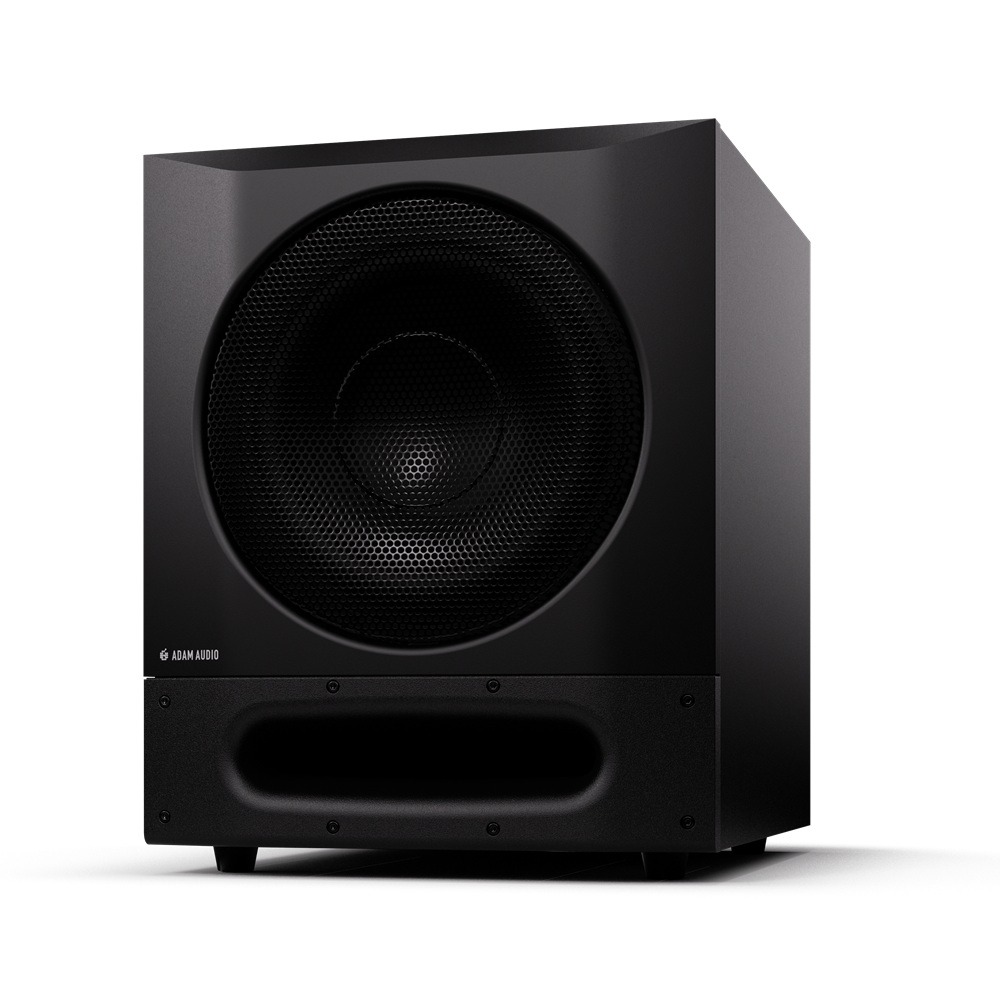

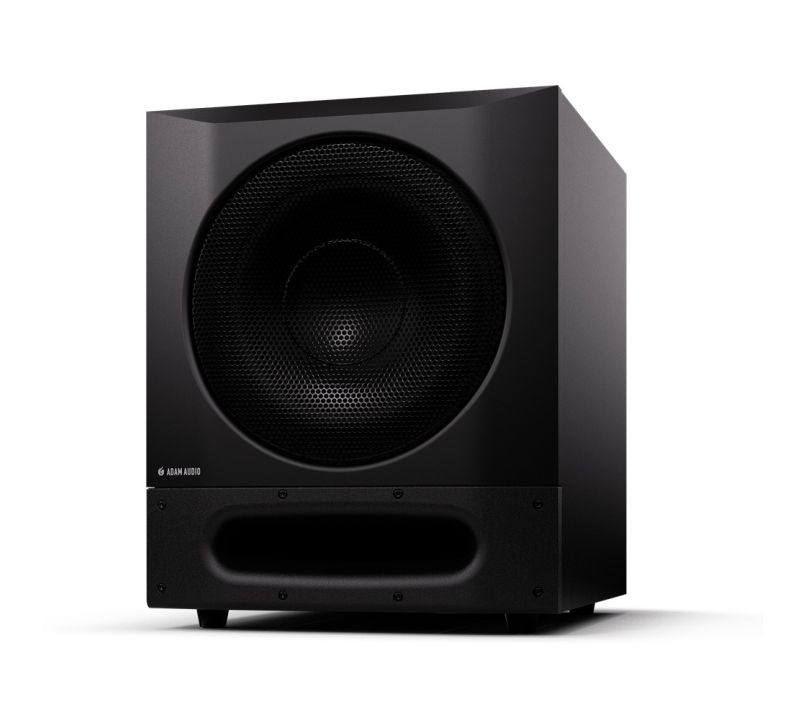

Adam Audio Sub10 Pro Subwoofer
Available to Order - Stock Incoming (Date TBC)
SKU
14106900
£1,129.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The Adam Audio Sub10 Pro is a professional 10” subwoofer designed to deliver powerful, controlled low-frequency reproduction for stereo and multichannel monitoring systems. Combining a high-excursion woofer, FEA-optimised bass port, high-performance Class D amplification and advanced DSP, it provides a solid foundation for detailed and accurate monitoring.
- See full product description
The Adam Audio Sub10 Pro is a professional 10” subwoofer designed to deliver powerful, controlled low-frequency reproduction for stereo and multichannel monitoring systems. Combining a high-excursion woofer, FEA-optimised bass port, high-performance Class D amplification and advanced DSP, it provides a solid foundation for detailed and accurate monitoring.
The Sub10 Pro offers extensive connectivity and control options, including AES3 digital I/O, balanced XLR and TRS analogue connections, and a dedicated footswitch input for quickly activating or bypassing bass management. Precise phase and crossover controls make it easy to integrate the subwoofer into your existing monitoring setup.
Network connectivity provides access to Adam Audio’s ADAM Control software, giving you remote control over tuning and calibration. You can time-align the subwoofer, adjust four bands of parametric EQ and apply Sonarworks calibration profiles directly through the integrated DSP platform. Firmware updates can also be installed via ADAM Control, allowing new functionality to be added over time.
Three operating modes provide flexibility for different monitoring applications. Stereo mode is designed for conventional 2.1 systems, LFE mode is optimised for immersive workflows such as Dolby Atmos, and Wide mode enables full-range playback for maximum flexibility with bass management elsewhere in the signal chain.
Inside, the Sub10 Pro combines a low-distortion, high-excursion woofer with a specially designed FEA-optimised bass port to minimise turbulence and deliver high sound pressure levels. A highly efficient Class D amplifier and DSP-controlled limiter provide powerful performance while protecting the woofer and electronics.
The Sub10 Pro is housed in a robust, vibration-resistant MDF cabinet with additional internal bracing and a protective steel grille. It comes with a 2-year warranty, extendable to 5 years upon product registration.
- 10” high-excursion woofer for powerful, controlled low-frequency reproduction
- FEA-optimised bass port designed to reduce turbulence and improve airflow
- High-performance Class D amplifier with DSP-controlled limiter
- Advanced DSP for precise crossover, filtering and equalisation
- ADAM Control network software for remote tuning, calibration and firmware updates
- Four-band parametric EQ for detailed response adjustment
- Sonarworks-ready with support for SoundID Reference calibration profiles
- AES3 digital input and output supporting two channels up to 24-bit/96 kHz
- Balanced XLR and TRS analogue I/O
- Dedicated footswitch input for activating or bypassing bass management
- Three operating modes: Stereo, LFE and Wide
- LFE mode with 120 Hz cutoff for immersive applications including Dolby Atmos
- Wide mode provides full-range playback for flexible bass management
- Robust MDF cabinet with internal bracing to minimise unwanted resonances
- Protective steel grille helps protect the 10” woofer
- 2-year warranty, extendable to 5 years with product registration
What's In The Box
- 1x Sub10 PRO
- 1x IEC power cable
- Quick start guide and safety and warning sheet
Acoustics
- Frequency Response @ -3 dB: 22 - 264 Hz
- Frequency Response @ -6 dB: 21 - 300 Hz
- Max SPL in half space at 1 m with sine bursts (average 50 - 100 Hz) at 3% THD (rms): 106 dB
- Max SPL in half space at 1 m with sine bursts (average 25 - 50 Hz) at 10% THD (rms / peak): 102 / 105 dB
- Max peak SPL in half space at 1 m with IEC-weighted noise (Stereo mode): 113 dB
- Dolby D.A.R.D.T. max peak SPL (full range / 85 Hz bass managed): 113 dB
- Crossover Frequencies: 70, 85, 100, 115 Hz
- Self-generated noise (@ 10 cm, level = +6 dB / Wide Mode): < 20 dB (A)
Drivers
- Woofer Basket Diameter: 10"
- Woofer Voice Coil Diameter: 45 mm
- Woofer Cone Material: Paper
Audio Input Connectors
- Analog: 2 x XLR / TRS combi
- Digital: XLR AES3
- Input Impedance (Analog): 25 kOhm
- Input Impedance (Digital): 110 Ohm
- Max. Input Level: 19 dBu
Audio Output Connectors
- Analog: 2 x XLR
- Digital: XLR AES3
Signal Processing
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 - 10 ms / 32-bit
- Protection: Independent peak and thermo limiters; Over Current Protection; Over
- Temperature Protection, Under Voltage Protection
Amplification
- Woofer amplifier - Type: PWM
- Woofer amplifier - Peak (10% THD, limiter deactivated): 325 W
- Woofer amplifier - RMS (1% THD, limiter deactivated): 200 W @ 3 Ohm
Control Options (via backplate)
- Input sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting, full space
- Level: -18 dB to +6 dB
- Input selection: analog, digital
- Phase: 0°, -45°, -90°, -135°, -180°, -225°, -270°, -315°
- Bass Management: 70, 85, 100, 115 Hz
- Operational Modes: Remote Control, Local / Stereo, LFE (<120Hz), Wide
- Footswitch: yes (Bypass), TS-connection latched
Control Options (via network)
- Networking connector: RJ45
- Connection type: Ethernet
- Communication protocol: AES70 / TCP
- Control software: ADAM Control
- Advanced Room Adaptation: 4 x PEQ, level, delay
- Third-party calibration compatibility: Import from Sonarworks SoundID Reference
General Data
- Cabinet design: Front Fire and front ported
- Cabinet material: Vinyl wrapped MDF and painted MDF front panel
- Power consumption; max, standby: 450 W max, 2.5W standby
- AC input voltage: 100 - 240V, 50/60 Hz
- Power rating: 450 W max
- Peak in-rush current: 6,8 A
- Operating conditions: -10° C to +40° C (+14° F to +104° F); <75% RH, non-condensing
- Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
Weight and dimensions
- Weight: 22.8 kg (50 lb 4 oz)
- Dimensions (H x W x D): 450 x 360 x 450 mm (17.7” x 14.2” x 17.7”)
