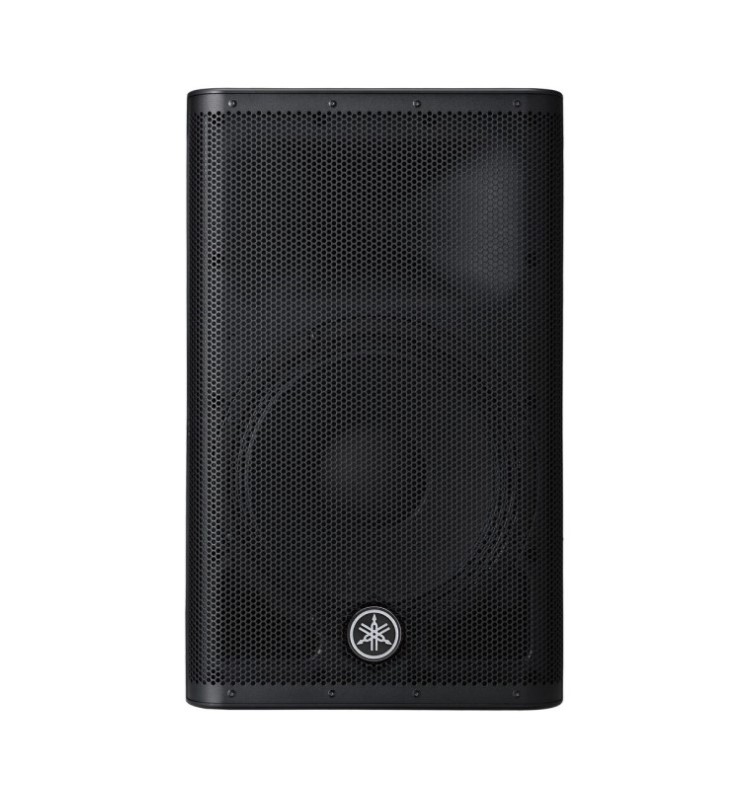

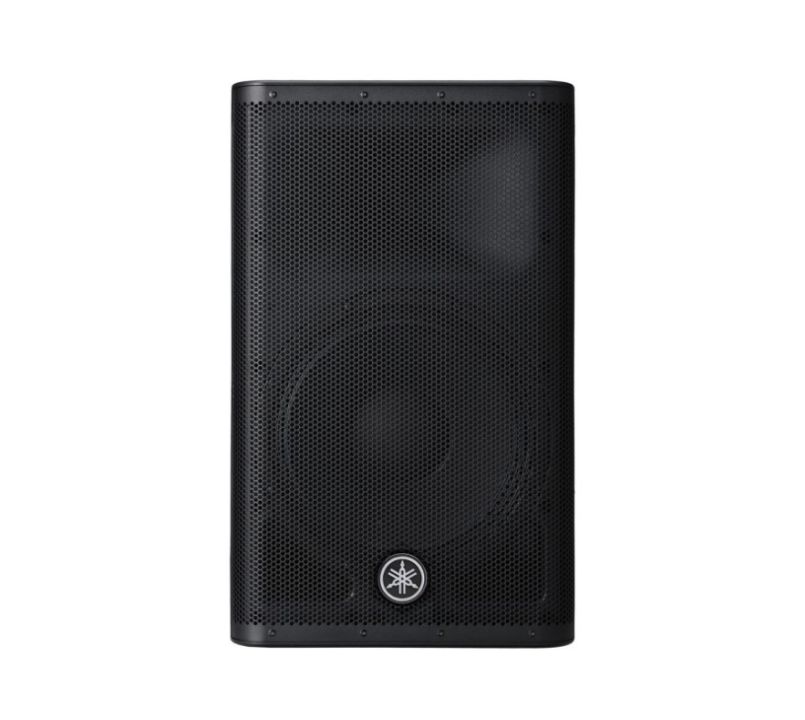

Yamaha DXR12mk2 12'' Active PA Speaker (1100w)

Availability:In stock

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Yamaha DXR12mk2 12” Active PA Speaker is a powerful 1100 watt powerhouse, with a 134 dB SPL output, Class-D amp, intelligent multiband compressor and seven years extended warrant at no extra cost when you register your product.

  • See full product description
  • Buy 2 for £719.00 each and save 3%

The Yamaha DXR12mk2 12” Active PA Speaker features an intelligent multi-band D-contour compressor which enhances your sound. Alongside it there is a FIR-X tuning feature which not only splits your high and low frequencies but also stops phase issues within the mid-range, resulting in clear sounds and smooth crossovers. The amplifier type is class-D, has a continuous power rating of 700 watts and a total dynamic power of 1100 watts. There is an impressive 134 dB SPL output and a frequency range of 52Hz – 20kHz, really capturing those low sounds.

The Yamaha PA Speaker features an integrated three-channel mixer which allows you to balance your sound sources with ease. There are two ¼” jack inputs, one XLR/¼” jack combo input and two RCA inputs.

Integrated into the speaker is a 50° symmetrical floor monitor angle. Additionally, there are two 35mm speaker pole mounts at 0° and 7°, which allows for more speaker positioning options, along with two top and one rear rigging points.

One final and important thing to mention is when you register your DXR12mk2 Speaker on Yamaha’s website, you will receive an extended seven years warranty, at no extra cost!

  • Register your product with Yamaha and receive an extended 7-year warranty
  • D-contour intelligent multi-band compressor optimises your sound
  • FIR-X tuning crossover stops phase issues in the mid-range
  • 50° monitor angle when laid on the side
  • Two 35 mm speaker pole mounts at 0° and 7°
  • Super efficient Class D amplification with 700 watts continuous output
  • Integrated 3 channel mixer lets you easily balance input sources
  • Easy to use presets for different rooms and PA configurations


  • System type: 2 way, bi-amped, bass reflex powered speaker
  • Frequency range (-10 dB): 52 Hz - 20 kHz
  • Coverage angle: H 90° x V 60° constant directivity horn
  • Crossover type: FIR-X tuning (linear phase FIR filter)
  • Max SPL (peak): 134 dB SPL


  • Low frequency: Diameter: 12'' cone, Voice coil: 2.5'', Magnet: Ferrite
  • High frequency: Voice coil: 1.75'', Diaphragm: PET, Type: 1'' throat compression driver
  • Magnet: Neodymium


  • Material, finish, colour: ABS, matte black
  • Floor monitor angle: 50° Symmetrical
  • Dimensions (WxHxD): 362 x 601 x 350 mm
  • Net weight: 18.6 kg
  • Pole socket: 35 mm x 2 (0° or 7°)
  • Rigging points: Top x 2, Rear x 1, fits for M10 eyebolts


  • Amplifier type: Class-D
  • Dynamic power rating: 1100 watts
  • Continuous power rating: 700 watts
  • Cooling: fan cooling, 4 speeds
  • AD/DA: 24 bit, 48 kHz
  • Signal processing: 48 bit
  • HPF/LPF: off, 100, 120 Hz 24 dB/octave
  • DSP presets: D-contour, FOH/main, monitor, off
  • Input connectors: 1 x XLR/1/4'' jack combo, 2 x 1/4'' jack, 2 x RCA pins
  • Output connectors: 2 x XLR
  • Idle power consumption: 35 watts
