1074

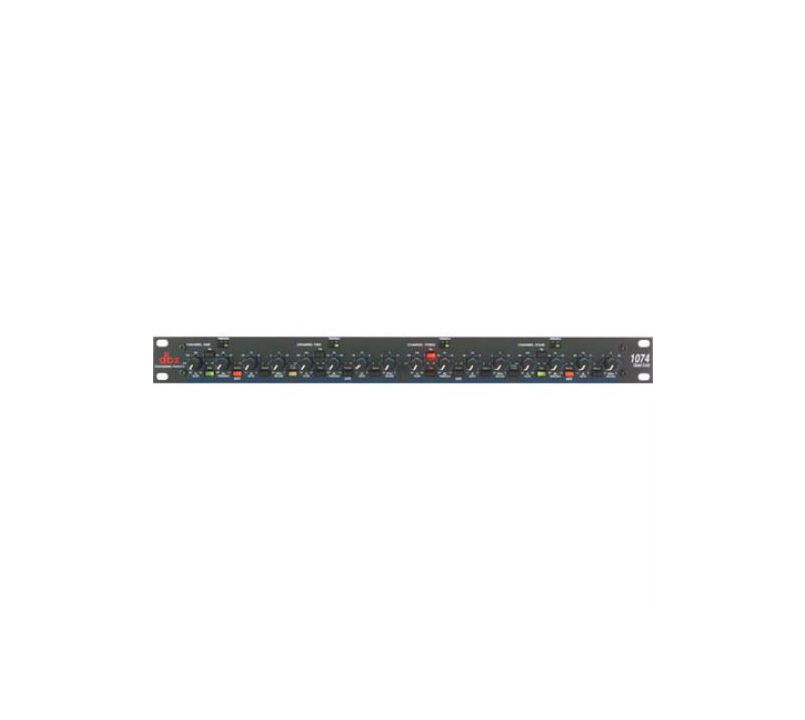

DBX 1074 Dynamic Quad Gate

The DBX 1074 Quad Gate. Work horse quad gate, especially useful in difficult recording situations.

The DBX 1074 offers 4 channels of gating with threshold, depth and release controls on each channel. The 1074, like the rest of the products in dbx 10 Series, is based on the legendary DBX V2 VCA and offers XLR inputs and outputs, and 1/4 inch side-chain input. In addition to an external key input per channel, the 1074 also has an internal filter that can be independently activated and controlled on a channel-per-channel basis. This filter allows the 1074 to not only clean up tracks, but gives you frequency selective control on each gate, to open exactly when you want it to.

The main features of the DBX 1074 include:

* Work horse quad gate, especially in difficult recording situations

* Four independent channels of gating

* Independent key filtering

* Independent Threshold and Release controls

* Differentially balanced gold-plated XLR and 1/4 inch inputs and outputs

* True RMS level detection

* dbx proprietary precision metering

* Stereo Coupling mode

* Switchable +4dBu or -10dBv operation per channel
