This Product Is No Longer Available - Please click HERE to view our latest range of Synths.

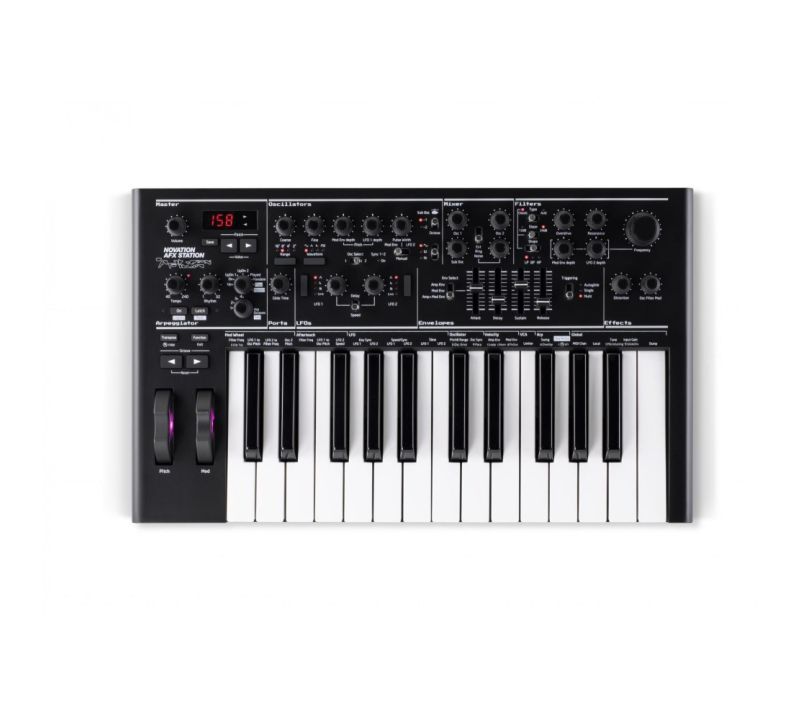

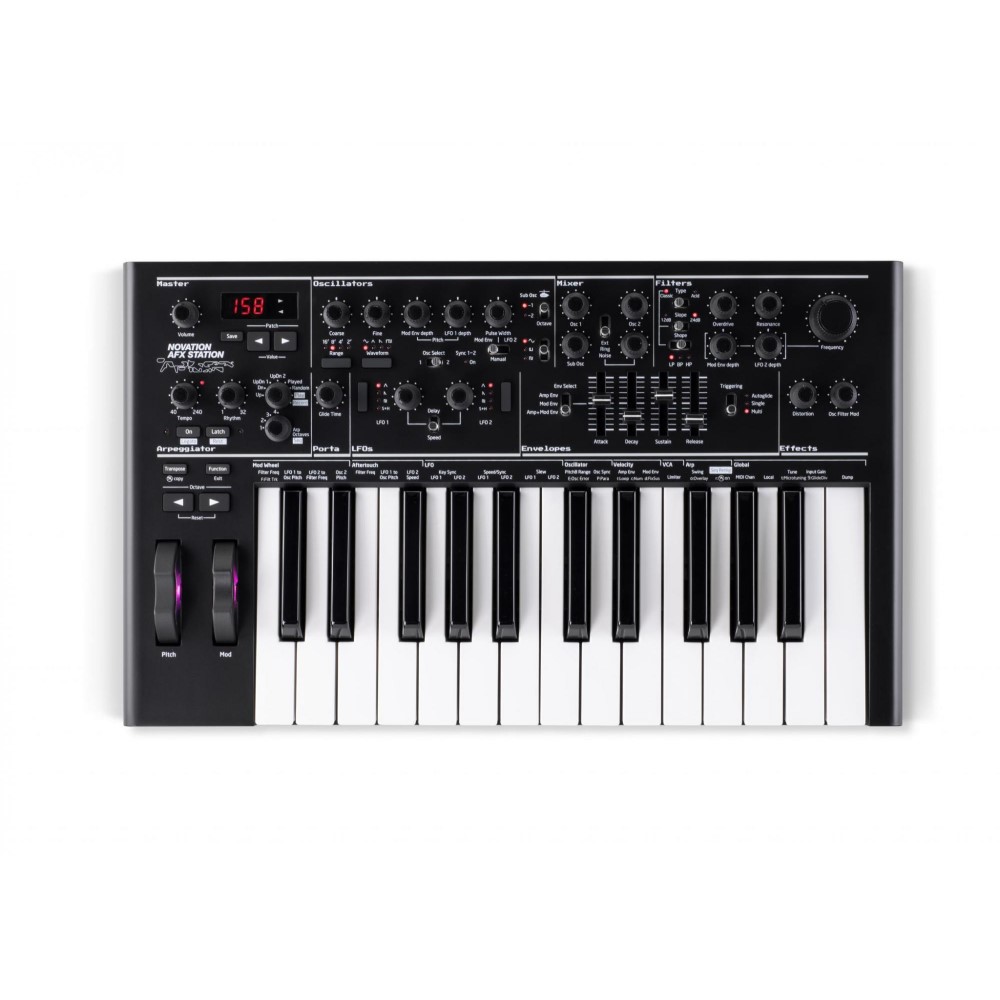

The Novation AFX Station is a new limited-edition version of the renowned Bass Station II. It is a classic modern monosynth with a mixture of digital control and analogue synth. The AFX Station includes all the same powerful features as the Bass Station II, and the special edition adds even more including the pre-installed firmware version 4.14 with a host of new additonal features and functions.
- AFX Mode from Aphex Twin
- Limited Edition gift box
- All new artist patches
- Overlay Editor in Novation Components
- Pre-installed v4.14 firmware
- See full product description
The Novation AFX Station is a new limited-edition version of the renowned Bass Station II. It is a classic modern monosynth with a mixture of digital control and analogue synth. The AFX Station includes all the same powerful features as the Bass Station II, including amp and filter modulation, two oscillators, multimode filter, an arpeggiator, step sequencing and more. The special edition adds even more and brings pre-installed firmware version 4.14 which includes extended sub-oscillator controls, fixed-duration envelopes, oscillator glide diverge and the much-admired AFX Mode from electronic music legend Richard D James aka Aphex Twin. With a solid foundation, the additional features, new design with striking purple reveals and the famous ‘A’ insignia, along with the customised gift box designed by Weirdcore, makes the AFX Station an instant collector’s item.
There are brand new artist patches in the form of 128 synth patches and seven overlay banks from Perplex On, Lightbath, Noyze Lab, r beny and Richard Devine which all display the creative vision of Aphex Twin. The addition of the new editor in Novation Components allows for full control when managing all the overlays.
AFX Station Limited Edition New Features
Firmware version 4.14 is already pre-installed on the AFX Station and brings with it a host of new and exciting features. Fixed-duration Envelopes and Retrigger counts is where envelopes can be set to a fixed length, and the decay slider, instead of the decay stage, sets the duration of the sustain stage. The retrigger counts are the number of times the envelopes retrigger and can be adjusted to allow more control for drum synthesis.
Extended Sub Oscillator controls can be used to create subtle or dramatic effects through using the sub-oscillator to follow the pitch of oscillator 1, which can be detuned using the coarse and fine controls, which results in the sub being tuned to any non-octave tracking interval.
Character to basslines, pads and leads can be built along with the thickness and creating portamento effects through the Oscillator Glide Diverge which allows the glide time of oscillator 2 to be reduced relative to oscillator 1 by a varying amount.
The Microtuning editing function allows complete control of the frequency triggered by each key press, giving scales even more scope.
The Paraphonic mode allows the pitches of the two oscillators to be controlled separately and allows two notes to be played simultaneously, which provides creative interaction through the Ring and Filter Mod.
Finally, the AFX Station come with a range of software including Ableton Live Lite, 4 GB Loopmasters, Free Melodics Lessons and access to the Sound Collective.
Novation Bass Station II
The Novation BassStation II is an analogue monophonic synthesiser based on the original BassStation, re-imagined for the modern environment. The Bass Station features the addition of two oscillators and a third dedicated sub-oscillator for adding even more punchy low end, resulting in thick basslines that are guaranteed to liven up any track.
The synthesiser has many capabilities and is versatile enough to produce beautiful arpeggios and razor-sharp leads. Add in the other brilliantly designed functions to change your musical parameters expertly; you know that including this in your studio setup will add not just one but many strings to your bow as a music producer or sound designer. Discover here further features of the Bass Station II.
- AFX Mode from Aphex Twin
- Aphex Twin-approved Look
- Limited Edition gift box
- All new artist patches
- Overlay Editor in Novation Components
- Pre-installed v4.14 firmware
- Fixed-duration Envelopes and Retrigger counts
- Extended Sub Oscillator controls
- Oscillator Glide Diverge
- Microtuning editing
- Paraphonic mode
- Included software
- Three Years Manufacturers Warranty
Hardware & controller assignment
- 25 note synth-action keyboard
- Aftertouch can be assigned to modulate: Filter frequency, LFO 1to Osc pitch, Osc 2 speed
- Pitch wheel
- Modulation wheel can be assigned to:LFO 2 to filter frequency, LFO 1 to Osc pitch, Osc 2 pitch
- Octave up/ down buttons
- New se64 factory presets
- 64 slots for user patches (and patch dump facility for storing more)
- Master volume dial
Inputs and Outputs
- USB MIDI (for connecting & powering Bass Station II via host computer)
- Mono output on 1/4" TRS jack
- Headphone output on 1/4" TRS jack
- External input on 1/4" TRS jack
- Sustain pedal input on 1/4" TS jack
- MIDI IN / MIDI OUT ports on 5 pin din
- DC power input
- Switch between power off / DC powered / bus powered
Synth Engine
- Oscillators - Osc 1, Osc 2, Sub Osc (3), Noise generator
- Osc 1 & 2 - Select between waveforms:Sine, Triangle, Sawtooth, Square/variable pulse width
- Features - Sync 1 & 2, Detune, Octave range, Pitch bend, Pitch modulation from Mod Envelope and/or LFO 1, Pulse width modulation from Mod Envelope and/or LFO 2
- Sub Osc (3) which is tracked to Osc 1 - Select independently between waveforms: Sine, Square, Narrow pulse
- Features - All modulation and tuning tracked to Osc 1, Independent octave select
Mixer
- Osc 1 level
- Osc 2 level
- Sub Osc level
- Noise generator level
- Ring modulation depth
- External signal level
Filter
- Two filter types - Acid type (diode ladder filter design), Classic type (derived from original Bass Station)
- Features - Cutoff, Resonance, Overdrive, Filter frequency to Mod Envelope depth, Filter frequency to LFO 2 depth
- Select 'Classic' filter between: Low pass, Band pass, High pass, 12dB slope, 24dB slope
Envelopes
- Two ADSR Envelopes (Attack/Decay/Sustain/Release) - Amp Envelope, Mod Envelope, Combined control of both Envelopes
- Select triggering mode between: Single trigger (holds envelope state when new note is played), Multi trigger (re-triggers with every new note played), Autoglide (engages portamento), VCA limiter
LFO
- Two LFOs each selectable between: Triangle, Sawtooth, Square, Sample and hold, Both LFOs independently adjustable between rate and delay time, Key sync LFO 1 & 2, LFO slew on LFO 1& 2 (low pass filter on the LFO waveform)
Effects
- Distortion send
- Oscillator filter mod amount (FM effect created by Oscillator 2 modulating filter freq)
Step Sequencer/Arpeggiator
- Arpeggiator - Up to 32 different patterns, Select between 1-4 octave range, Swing function, Select direction: Up, Down, Up / down 1, Up / down 2, As played, Random, Latch (hold the arpeggiator)
- Step Sequencer - Up to four sequences, Assign one of 32 preset rhythms or create your own, Insert rests or legato (slide), Sequencer re-trigger function
- Portamento - Adjust glide time, Single trigger or re-trigger modes, Integrate into step sequencer and arpeggiator
