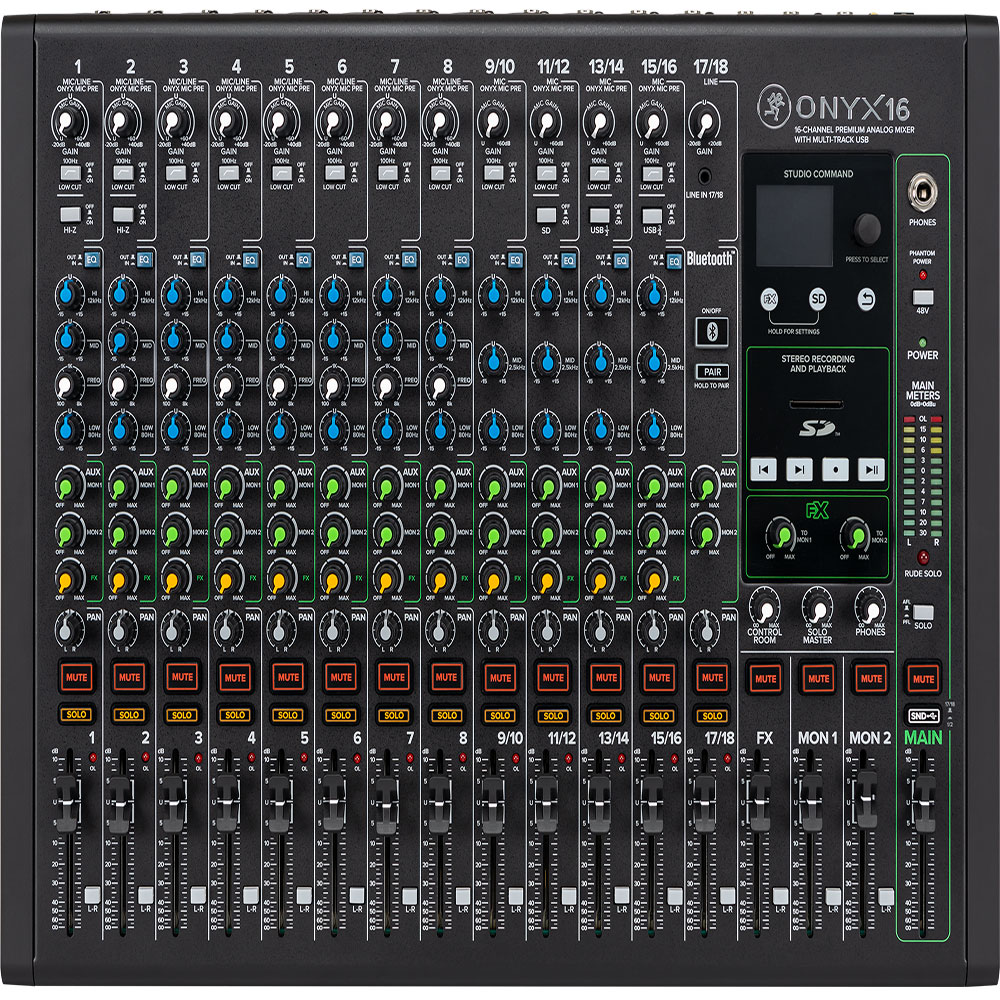

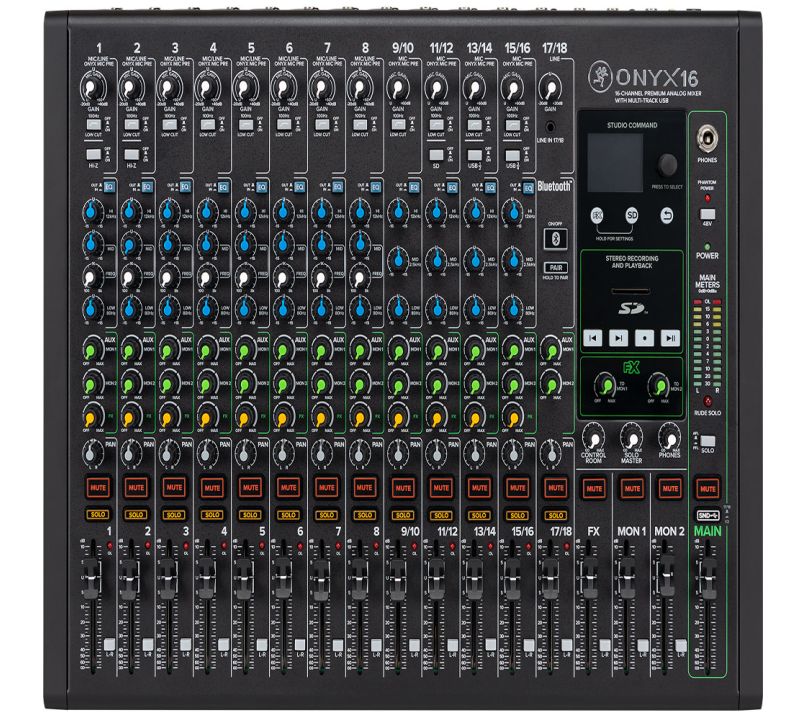

Mackie Onyx 16 Channel Analog Mixer

£635.00

Seen it cheaper? We match authorised UK dealers

Quick overview

Create the sound you want. Mackie’s Onyx 16 analogue mixer provides sound quality like no other, the multi-track recording and host of built-in effects make it perfect for live audio, home recording, or professional systems.

  • See full product description
Deko Pay

0% Finance: From only £36.13 per month!

Create the sound you want. Mackie’s Onyx 16 analogue mixer provides sound quality like no other, the multi-track recording and host of built-in effects make it perfect for live audio, home recording, or professional systems.

Mackie’s Onyx series has been designed to be easily operated, built with LED buttons that shine in the darkness, you will always know where you are and what you are in control of even when the lights are off. You’ll find the Studio Command includes a full-colour display that allows for easy adjustments to be made to effects and playback/recording.

A modern take on classic sound

Ready with 12 award-winning Onyx preamps, you won’t miss the additional 60dB of gain. Experience the famous Perkins EQ with variable midranges that offer incredible quality. You won’t be short for digital effects as the Onyx 16 comes pre-loaded, with user-defined reverbs, delays and loops all managed by the dedicated FX EQ.

Whether you choose to use PC or Mac, the Onyx 16 can handle high-resolution multi-track recording at 18x4 96kHz / 24-bit via USB. Send your main mix off to USB with the dedicated switch, and direct recording and playback from SD.

Designed with function in mind, the Onyx 16 has a built-in display so you can browse files on your SD card quickly, along with physical buttons for Previous, Next, Record and Play/Pause you have all the control you would ever need. Save your favourite FX presets onto your device with 6 customisable slots.

Professional High-resolution FX

The power is in your hands, with built-in effects perfect for live performances, streams and beyond, creativity is your only limit. Find the excellent sound for you, the adjustable FX and parameters are supported by the devices dedicated EQ.

Cut the Wires

Control your sound remotely, the Bluetooth feature to the Onyx 16 allows you to stream audio directly to a dedicated channel on the mixer, with the option to route this to an Aux or Main mix

  • 3-Band Perkins EQ, with On/Off bypass switch.
  • Hi-Z switches to allow connection from guitars and other instruments.
  • 100Hz low-cut filter.
  • Bluetooth.
  • Aux/Monitor output with dedicated per-channel send control.
  • 12-Segment stereo meters.
  • PFL/AFL channel solo.
  • Footswitch input for FX mute (Footswitch not included).

Inputs

  • Input Channels: 16
  • Mono Mic/Line: 8
  • Mic/Stereo Line: 4
  • Stereo Line: 1
  • Mic Preamp Type: Onyx Mic Preamp
  • 48v Phantom Power: Global, Switchable
  • 100Hz Channel Low-cut: Switchable per channel
  • Channel EQ: Perkins ‘British style’ 3-band EQ
  • Channel Inserts: Ch. 5-8

Outputs

  • Aux Sends: 2 + FX Send
  • Bluetooth & Stereo 1/8”: Ch. 17/18
  • Main Outputs: L/R TRS & XLR
  • Main Meters: 12-Segment LED
  • Channel Solo: AFL / PFL

Other

  • Level Controls: 60mm Faders
  • Internal FX: Adjustable Delay, Reverb, Chorus, and more
  • Built-in Display: Full-colour display, Single-knob interface, Adjust FX, Manage recordings
  • USB Recording: 96kHz / 24-Bit 18x4 on PC/Mac
  • SD Card Recording: 96kHz / 24-Bit 2x2
  • Rackmount: Optional Rackmount kit

Power

  • Power Supply: Internal Universal 100 – 240 VAC.

Size

  • Weight: 6.9 Kg / 15.2 Lb
  • Dimensions (L x W x H): 18.7 x 14 x 5.4 Inches / 476 x 356 x 136 mm.
