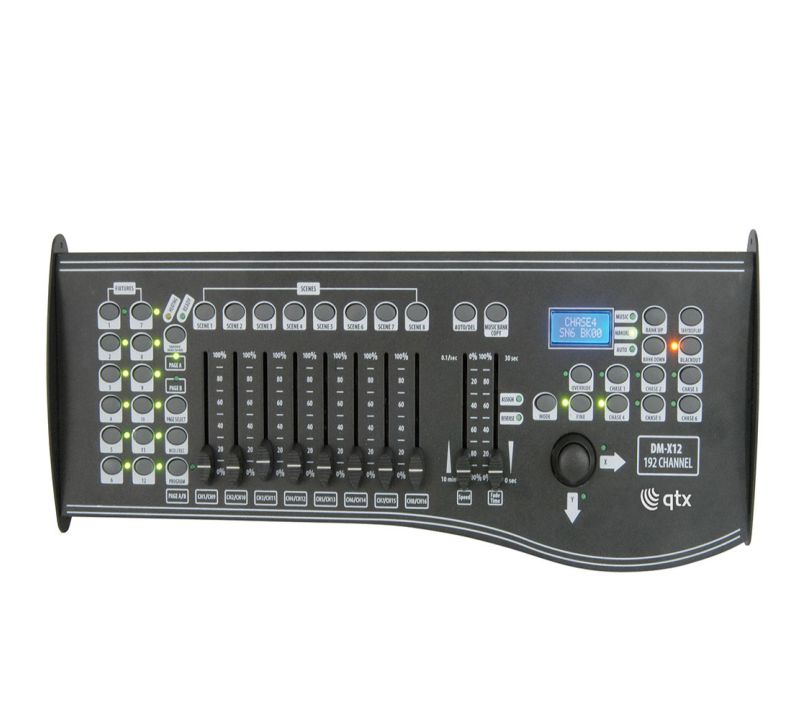

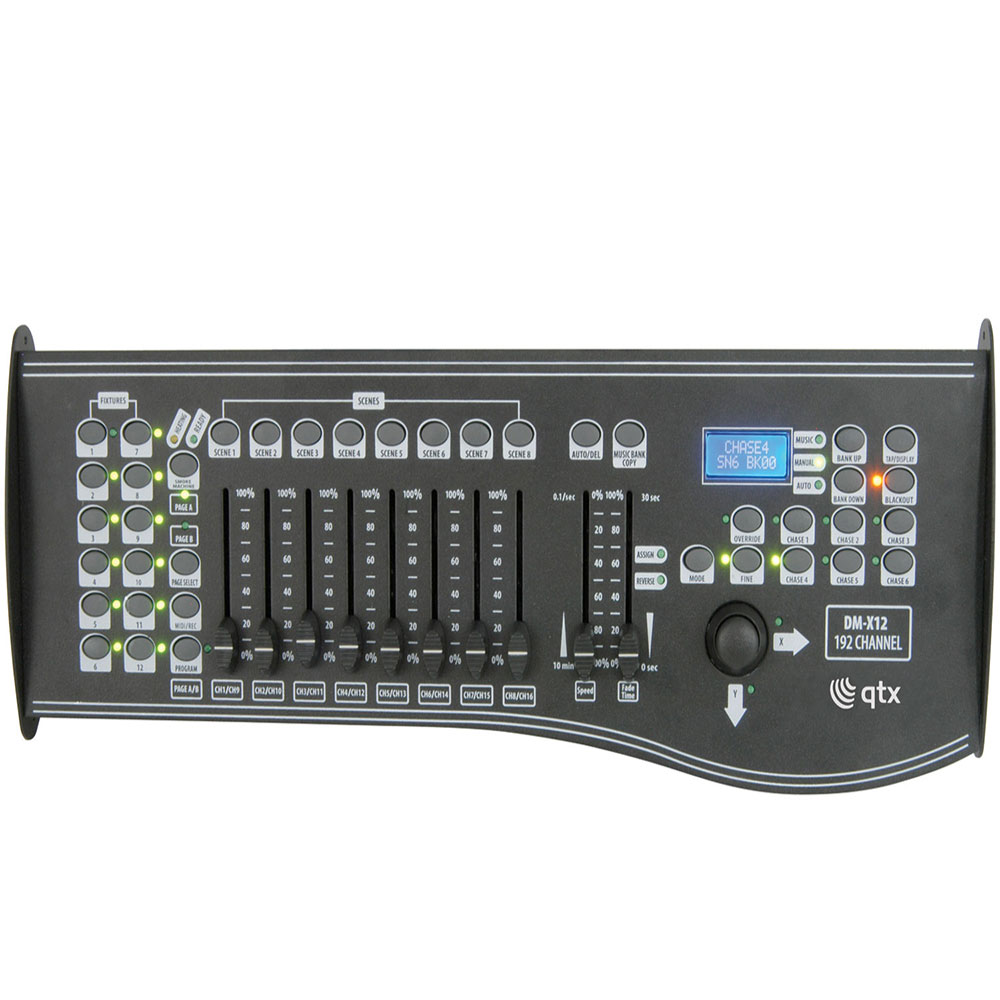

QTX has produced this 192 Channel DMX Controller, complete with an inbuilt joystick that gives excellent control over specific channels. An ideal tool when fine-tuning the pan and tilt movements on your fixtures and units.
- High quality LCD display
- Joystick to control X & Y parameters
- 12 scanners with 16 channels
- 30 banks each with 8 programmable scenes (240 scenes in total)
- 8 channel slider
- 6 chase banks
- See full product description
QTX has produced this 192 Channel DMX Controller, complete with an inbuilt joystick that gives excellent control over specific channels. An ideal tool when fine-tuning the pan and tilt movements on your fixtures and units. Included with the unit is a gooseneck LED light that can be attached to the rear to provide much-needed light in dark and hard to see areas.
12 Scanner buttons can be found on the unit, which controls up to 16 channels individually, whilst the 30 programmable buttons can hold 8 scenes each. These scenes can be programmed further into 6 chase sequences, holding up to 240 separate scenes. You can trigger through sound activation, manually or by using the automatic mode by the time faders.
- High quality LCD display
- Joystick to control X & Y parameters
- 12 scanners with 16 channels
- 30 banks each with 8 programmable scenes (240 scenes in total)
- 8 channel slider
- 6 chase banks
- Music, auto or manually triggered chase sequences
- Speed control from 0.1 second to 10 minutes
- MIDI connection facility (MIDI IN) to run the unit synchronous with your MIDI unit or
- compatible software
- Blackout button
- File dump allows data to be sent or received between two units
- Built-in microphone or LINE IN RCA jack socket for accurate audio triggering
- LED gooseneck lamp
- DMX polarity switch at the rear
- Power failure memory
- Power supply: 9Vdc, 1A
- Dimensions: 482 x 190 x 90mm
- Weight: 3.0kg
