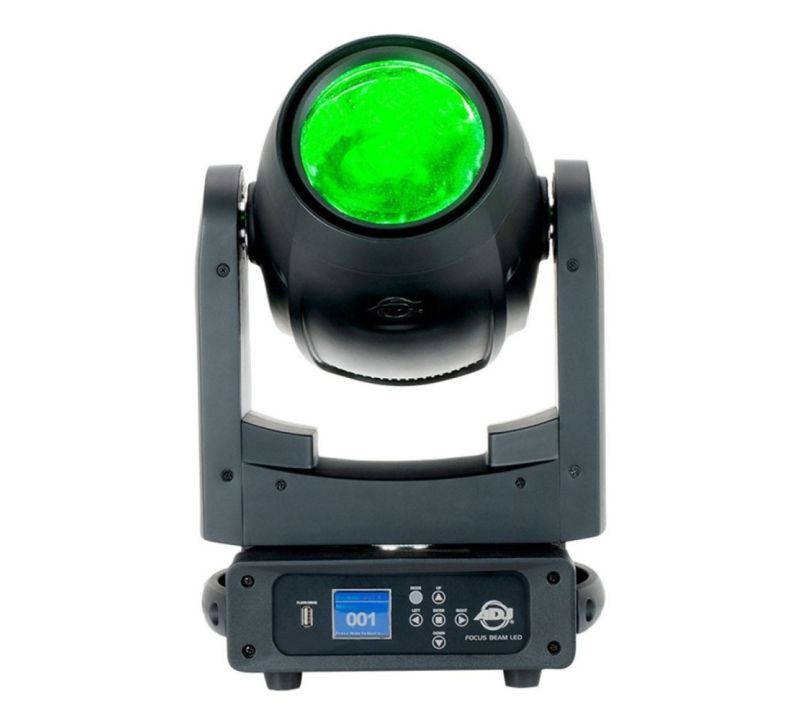

ADJ Focus Beam LED Moving Head

Availability: In stock
SKU
1237000208
£1,159.00

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The ADJ Focus Beam LED, a complimentary fixture to the other Focus Series moving heads. The Focus Beam LED uses a mighty 80W LED engine to produce a powerful, 7400K, 3-degree beam from an advanced optical system.

  • See full product description
  • Buy 2 for £1,139.00 each and save 2%

The ADJ Focus Beam LED, a complimentary fixture to the other Focus Series moving heads. The Focus Beam LED uses a mighty 80W LED engine to produce a powerful, 7400K, 3-degree beam from an advanced optical system. The Focus Beam LED features a motorized focus, two prism effects (rotatable 8-facet Circular and rotatable 6-facet Linear and prism layering). Furthermore, it manages wash effects efficiently thanks to the built-in frost filter.

There are a variety of control options available on the American DJ Focus Beam them including DMX & RDM protocol, a selection of dimming modes, fine pan and fine tilt options, adjustable gamma and LED refresh rate settings. The on-board function display has five touch buttons making it easy to dial in custom settings.

The ADJ's Focus Beam LED is lightweight and extremely compact, making it convenient for mobile DJs that need to commute to different venues. It also comes equipped with a bracket meaning it is effortless to set up on different rigs whether you are at an intimate or a large venue.

If you are looking to buy led moving head lighting effects that stand out from the competition, the Focus Beam's are for you!

Light Source

  • 80W Cool White LED Engine
  • 2.5° Beam Angle
  • Colour Temperature: 7400K
  • 50,000 Hour Average LED Life

Features

  • Control Protocol: DMX & RDM
  • DMX Modes: 2 (16 & 18)
  • Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
  • Dim Speed control (0.1~10 Seconds)
  • Dimming: 0 - 100%
  • Strobe & pulse control
  • Motorized Focus
  • Linear Frost 0-100% (Wash effect)
  • 2 Prisms: 6 & 8 Facet, Indexable and Rotatable
  • USB firmware update port
  • Adjustable LED Refresh Rates (900~25k Hz)
  • Adjustable Gamma Settings (1.0-2.8)
  • With Wired Digital Communication Network
  • Display: Touch display with 5-button touch menu

Color Wheel

  • 13 dichroic colours + white

GOBO Wheel

  • Metal wheel with 15 fixed GOBOs + Open
  • GOBO shake effect

Prism Wheel

  • Prism Wheel 1: Rotatable 8-facet Circular
  • Prism Wheel 2: Rotatable 6-facet Linear
  • Prism Indexing with the overlay feature

Control

  • Control Modes: DMX512, RDM & Stand Alone Internal Programs
  • 2 DMX Channel Modes: 16 & 18 channels
  • 16-Bit Pan, Tilt & Dimmer control

Connections

  • DMX Connections: 3-pin Locking XLR In & Out
  • Power Connections: Seetronic Locking Power In & Out

Pan/Tilt

  • Pan & Pan Fine: 630 degrees
  • Tilt & Tilt Fine: 270 degrees

Electrical

  • Multi-voltage operation: AC 100-240V, 50-60Hz (Auto Sensing)
  • Maximum Power Consumption: 136W @ 120V
  • Daisy chain: 15 units @ 120V; 30 units @ 230V

Dimensions & Weight

  • Dimensions (LxWxH): 10.96" x 6.85" x 17.61" / 278x174x447mm
  • Weight: 27 lbs. (12.25 kg)

What’s Included

  • 2x Omega Brackets
  • 1x Seetronic Power Locking Power Cable
