NOW DISCONTINUED REPLACED WITH DJM-900 NXS2

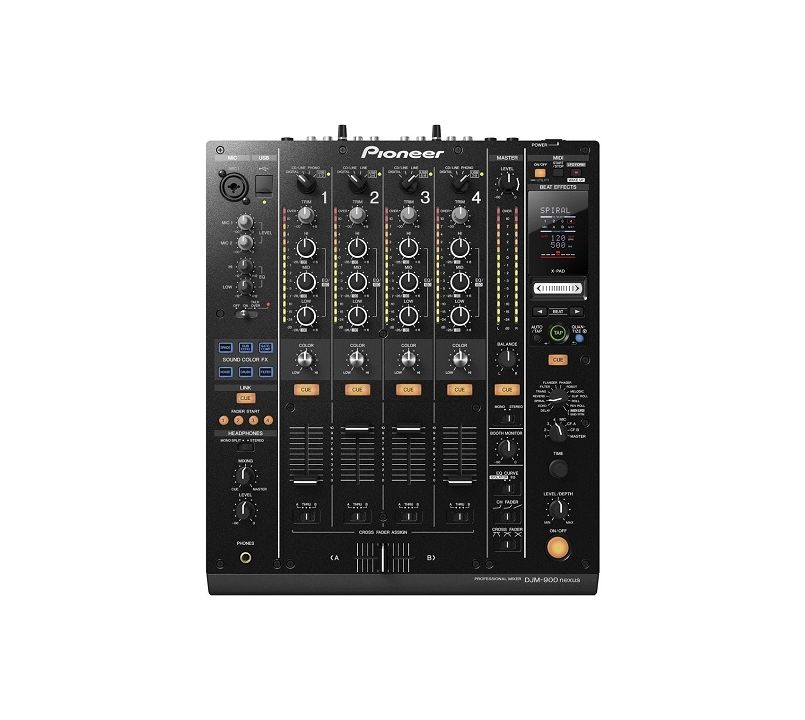

The Pioneer DJM-900 nexus mixer is the most popular DJ mixer used within the industry. The reason being is its connection reliability, fantastic performance characteristics, incorporates the most current FX features, is solid and hardwearing (as it has enhanced fader technology and audio circuits resulting in the lifespan of the mixer also improved) and plug-and-play software ensuring a smooth and steady handover for DJs.
The DJM-900 Nexus mixer includes an in-built X-PAD to use with Beat Effect and modify its boundaries at the touch of a finger. The mixer has the ability to allow for Beat FX to be assigned to 13 channels. The DJM-900 Nexus comes with an in-built USB soundcard which promises high quality sound output in addition to the high-class sound design. When connected to a computer/laptop there is the option to adjust the audio routing, mixer and soundcard settings. The Nexus comes with 6 sound FX (Crush, Noise, Gate/Comp, Filter, Space and Dub Echo) which are of top-quality studio standard and accessible on every channel.
There are a few other features worth mentioning. Firstly there is the ability to use ProDJ Link where one source can be shared after connecting the DJM-900 Nexus Mixer to other players, laptops or turntables using a LAN connection. As the mixer has Scratch, DVS control becomes available when connecting a CDJ or laptop directly. Finally, due to the 900 Nexus’ transferable MIDI functions (MIDI) it can also be used as a MIDI Controller.
Pioneer DJM-900 Nexus pro DJ digital mixer Features
The strong Magvel Faders are built to last. They consist of two metal shafts that hold the fader knobs whilst using a contact free magnetic system design to ensure that they are as resilient as possible.
X-PAD - one fingered touch
Ability to use X-PAD with Beat FX and modify its boundaries at the touch of a finger.
The mixer allows for Beat FX to be assigned to 13 channels including Echo, Reverb, Roll, Delay, Spiral, Filter, Reverse Roll and Flanger.
Quantized Beat FX
Quantize snaps Beat FX, cues and loops to the Rekordbox beat grid for precise performances.
An in-built USB soundcard permits input/output of stereo signals all at the same time without compromising on the quality of the audio (due to the high-sampling audio rate of 96kHz/24-bit). When the unit is connected to a computer/laptop there is the option to adjust the audio routing, mixer and soundcard settings
High-class sound design
The mixer’s sound is top quality due to a 32-bit A/D converter installed within the casing. This in turn improves the quality of the sound output to its highest. A 32-bit digital signal processor has been installed to restrain digital noise. Analogue noise has also been concealed through the well designed balanced hybrid operation amps and circuit outputs.
Easily controlled effects
The Nexus comes with 6 sound FX (Crush, Noise, Gate/Comp, Filter, Space and Dub Echo) which are of top-quality studio standard and accessible on every channel. The new FX are Space (which adds a high-pass and low-pass feel) and Dub Echo (which allows high-pass and low-pass control over a new tape delay effect). Noise has been taken from the ever popular DJM-2000 and Gate/Comp allows you to either completely strip back your music or alternatively fills it out to blend very different creations together.
EQ isolator on each channel
The 3-band EQ isolator can be used on each channel to modify the low, mid and high frequencies.
ProDJ Link can be used where one source can be shared after connecting the DJM-900 Nexus Mixer to other players, laptops or turntables using a LAN connection. Access to Rekordbox allows syncing of the beat with master deck, access to pre-prepared loops and cues and access to lots of advanced ProDJ features.
As the mixer has Scratch, DVS (Digital Vinyl System) control becomes available when connecting a CDJ or laptop directly. Please note the DJM-900 Nexus does not support Serato Scratch Live™.
Due to the vast array of the 900 Nexus’ transferable MIDI functions it can be used as a MIDI Controller.
Pioneer DJM-900 Nexus pro DJ digital mixer Tech Spec:
- Number of channels: 4 audio channels, 2 mic channels
- Input ports: CD/LINE x 5 (RCA), PHONO x 3 (RCA), DIGITAL IN x 4 (COAXIAL), MIC x 2 (XLR & 1/4 inch PHONE dual purpose x 1, 1/4 inch PHONE x 1)
- Output ports: MASTER OUT x 2 (RCA x 1, XLR x 1), BOOTH OUT x 1 (1/4 inch PHONE), HEADPHONE MONITOR OUT x 1 (top surfaace 1/4 inch PHONE x 1), REC OUT x 1 (RCA), DIGITAL OUT x 1 (COAXIAL)
- Other ports: SEND x 1 (1/4 inch PHONE), RETURN x 1 (1/4 inch PHONE), MIDI OUT x 1 (5P DIN), USB B port x 1, LINK port x 1
- Sampling rate: 96 kHz
- D/A converter: 32 bit
- A/D converter: 24 bit
- Frequency response: 20 Hz - 20 kHz
- Total Harmonic Distortion ratio: 0.004% or less
- S/N ratio: 107 dB or greater (LINE)
- Head room: 19 dB
- Power source: 120 V AC (60Hz)
- Power consumption: 42 W
- Maximum Dimensions (W x D x H in inches): 13 x 16.1 x 4.2
- Unit weight: 15.7 lbs
