Mackie Mix5 5-channel Compact Mixer

Availability: In stock
SKU
2044094-03
£69.00

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

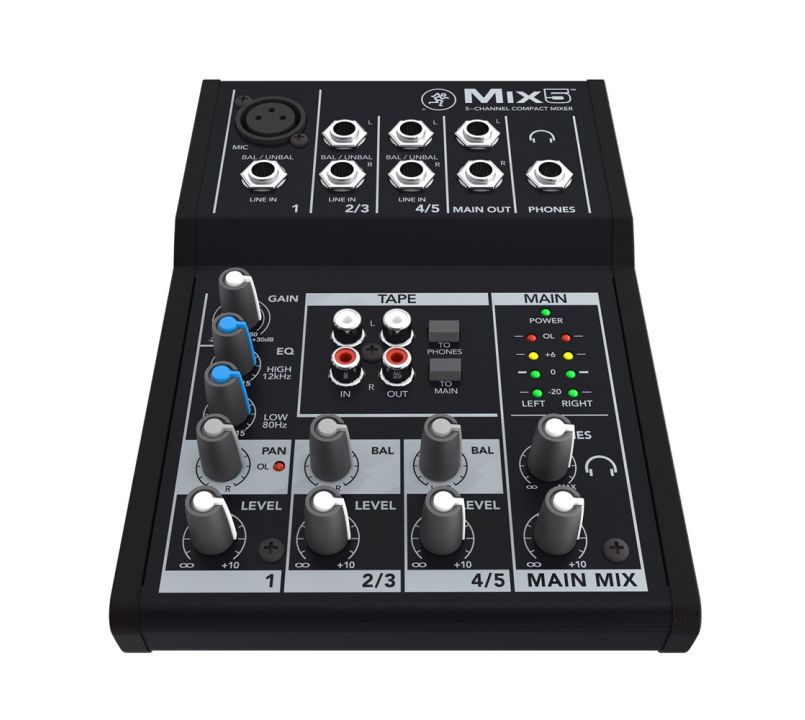

The Mix5 5-channel compact mixer is reliably rugged, with the proven quality you expect from Mackie, the world leader in compact mixer design.

  • See full product description

The Mix5 5-channel compact mixer is reliably rugged, with the proven quality you expect from Mackie, the world leader in compact mixer design. Perfect for straightforward applications that incorporate a single mic with other sources, Mix5 sounds great and maintains audio quality from any source.

Plus, with a rugged metal chassis and high-quality components throughout, Mix5 is a solid investment in reliability. An amazing value, Mix5 is extremely easy to use and delivers the sound quality you need in a rugged design built to last. Plus, wouldn’t you rather mix on a Mackie? Don’t sacrifice – choose the Mackie Mix Series.

  • 5-channel compact mixer with proven high-headroom, low-noise performance
  • 1 mic/line input with studio-level audio quality
  • 2-band EQ with clean, precise tone shaping
  • Phantom power for studio condenser mics
  • 2 stereo 1/4" line inputs
  • Dedicated stereo RCA inputs/outputs for playback or recording
  • Main L/R outputs
  • Headphone output with separate volume control
  • Rugged, reliable design built to last
  • Extremely compact and portable

Noise Characteristics (20Hz-20kHz bandwidth, 150 Ω source impedance)

  • All outputs, master levels and channel levels off: -100 dBu
  • All outputs, master levels unity, all channel levels off: -90 dBu
  • All outputs, master levels unity, 1 channel level unity: -85 dBu

Distortion (THD-N) (1kHz, 20Hz-20kHz bandwidth)

  • Mic Input to Main Output: <0.1% @+4 dBu output

Attenuation and Crosstalk (20Hz-20kHz bandwidth)

  • Inputs to Outputs @ 1kHz: -85 dB
  • Main Mis Off @ 1 kHz: -80 dB

Frequency Response

  • Mic input to any output (gain @ unity): +0, -1, 20Hz to 30kHz

Equivalent Input Noise (EIN) (Mix in to Insert Send out, max gain.)

  • 150Ω termination: -125 dBu

Common Mode Rejection Ratio (CMRR) (Mic in to Insert Send out, Max gain.)

  • 1 kHz: better than 70 dB

Maximum Levels

  • Mic inputs (XLR): +18 dBu
  • All other inputs: +21 dBu
  • All outputs: +21 dBu

Impedances

  • Mic in: 2 kΩ
  • All other inputs: 10 kΩ or greater
  • Tape out: 1 kΩ
  • Phones out: 22 Ω
  • All other outputs: 120 Ω unbalanced, 240 Ω balanced

EQ

  • High Shelving: ±15 dB @ 12kHz
  • Mid Peaking: ±15 dB @ 2.5kHz
  • Low Shelving: ±15 dB @ 80 Hz
  • Low Cut Filter: 18 dB/octave, -3 dB @ 75 Hz

AC Power Requirements

  • Input: AC220-230V∼, 50/60 Hz
  • Output: (AC9V∼300mA)x2
  • Operating Temperature: 0º - 40°C/32°-104°F

Other

  • Height: 43 mm / 1.7 in
  • Width: 140 mm / 5.5 in
  • Depth: 196 mm / 7.7 in
  • Weight: 0.6 kg / 1.4 lb
