Citronic U-Pad Compact Audio Mixer with USB Interface FOR LIVE STREAMING

£69.99

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

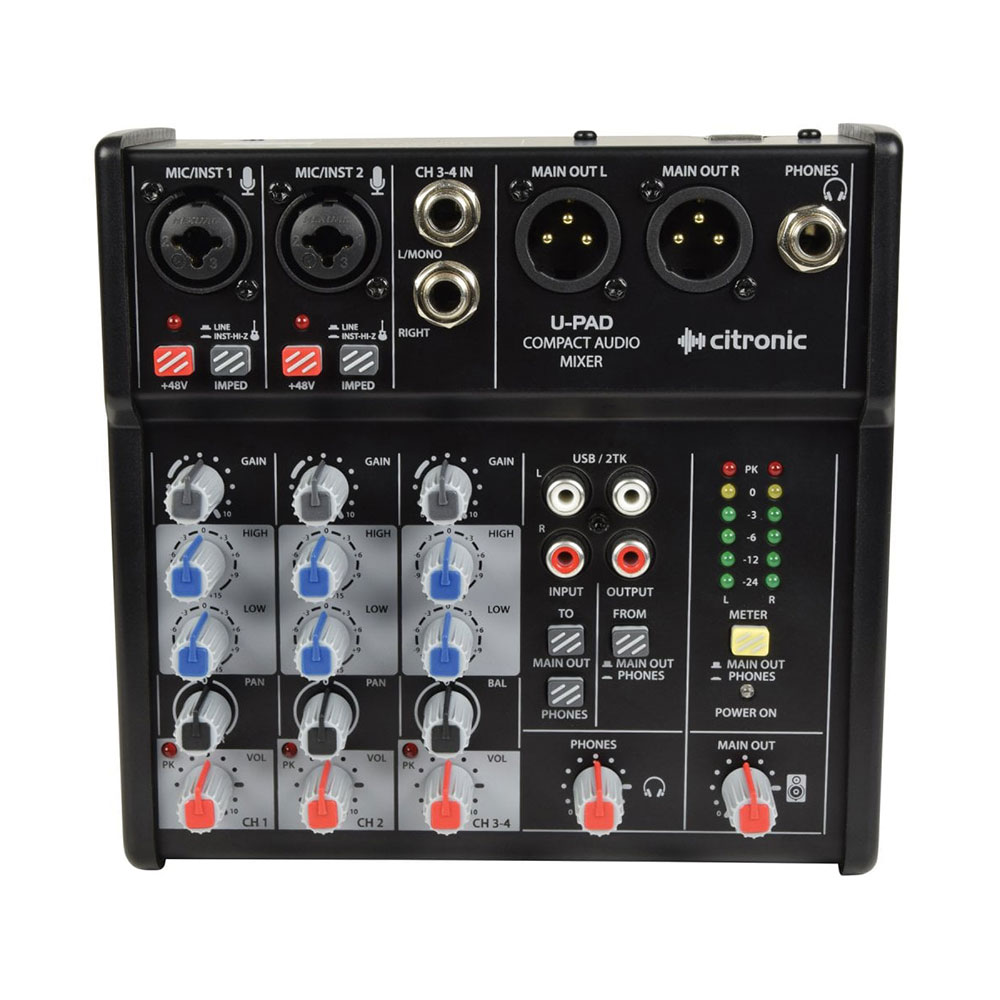

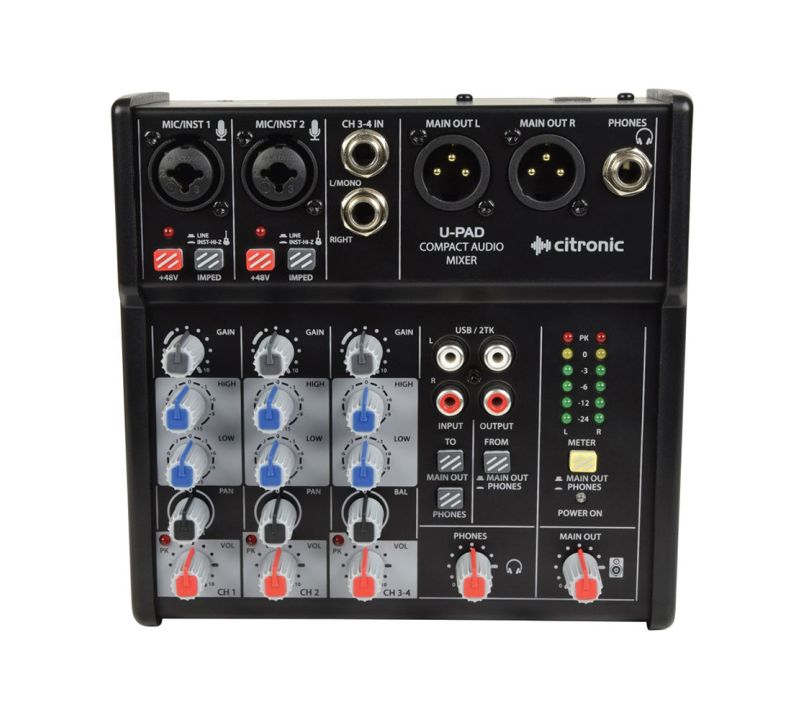

The Citronic U-Pad is a compact audio mixer with two single inputs and a stereo line input. Both single channels have a combo XLR/jack input, an individually switchable mic/instrument impedance and +48V phantom power for the XLR microphone connector.

  • High-quality digital stereo input via USB
  • High-quality digital stereo output via USB
  • Studio-grade balanced analogue inputs
  • Studio-grade balanced analogue outputs
  • See full product description
Deko Pay

0% Finance: Spend £208.01 more to qualify.

The Citronic U-Pad is a compact audio mixer with two single inputs and a stereo line input. Both single channels have a combo XLR/jack input, an individually switchable mic/instrument impedance and +48V phantom power for the XLR microphone connector.

U-Pad features High/Low EQ and Pan controls are present on all mono and stereo input channels, and a USB digital input can be routed to the main output or to monitor headphones. The analogue output is delivered to a pair of balanced XLR connectors and digitally to the USB for recording and live streaming. Powered from a USB port on a laptop, the U-PAD offers high-quality recording capabilities in any environment.

  • High-quality digital stereo input and output via USB
  • Studio-grade balanced analogue inputs & outputs
  • Individually switchable to +48V phantom power
  • Comes with a USB lead for power and PC/Mac connection
  • Power supply: 5.5Vdc (USB)
  • Gain: -14 to +40dB
  • EQ: low±15dB @ 80Hz
  • EQ: high±15dB @ 12kHz
  • Phantom power: +48V individually switchable (XLR inputs only)
  • Input impedance: mic2k Ohms
  • Input impedance: instrument1M Ohms
  • Input impedance: line20k Ohms
  • Frequency response: 20Hz - 20kHz (±0.5B)
  • USB computer interface: Duplex stereo in/out AD/DA
  • Sampling format: 24-bit, 96kHz max.
  • THD: +N<0.03% @ 1kHz
  • Dynamic range: 102dB
  • Crosstalk: stereo92dB
  • OutputLeft: + Right balanced XLR (analogue)
  • Output impedance: 120 Ohms
  • Dimensions: 171 x 166 x 66mm
  • Weight: 900g
