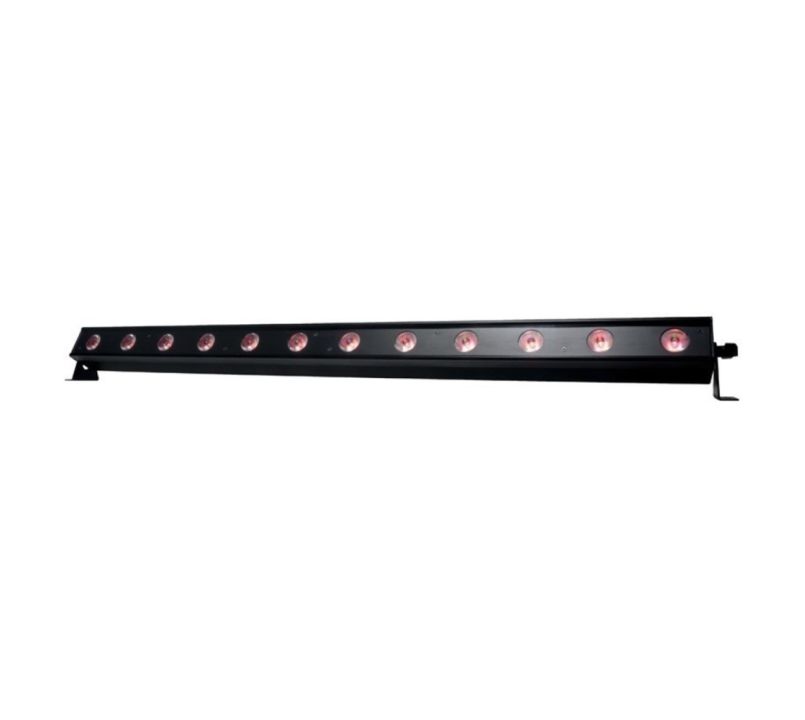

American DJ UB 12H LED Bar Lighting Effect
BACK-ORDER - Estimated Stock Arrival: 14-01-2026
SKU
1226200068
Special Price £279.00 Was: £299.00 Save £20.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The ADJ UB 12H is an LED lighting effect featuring twelve 6w RGBAW+UV Dimmer HEX LEDs to provide vibrant and stunning light.
- See full product description
The American DJ UB 12H is a 1-meter long professional grade indoor lighting effect driven by twelve 6w RGBAW+UV Dimmer HEX LEDs, which provides bright and stunning lighting effects that will impress your audience.
The UB 12H features a 40-degree beam angle that produces vibrant six-colour colour mixing that covers walls, dance floors and stages with energetic light. The robust enclosure features a patent-pending Quick Align end locking which provides seamless light output with zero breaks in colour. The lighting unit also features in-built colour macros, so there is a broad range of colours to play with.
There are five operation modes, including auto Program Run, Sound Active, RGBAW+UV Dimmer, Static Colour and DMX-512 Mode. The light dimmer mode ranges from 0-100% and a strobe with variable speed control. The UB12H offers flexible programming from the onboard 4-button LED DMX-512 or from the ADJ UC IR wireless remote that comes included. This lighting effect unit is perfect for clubs and bar venues and productions, significant events, theatres and public openings.
- 41.75-inch (1 meter) indoor Linear Bar with 12x 6W HEX LEDs (RGBAW+UV)
- Great for Stage or Wall Washing!
- 6 DMX Channel Modes: 3, 5, 6, 7, 8 or 20 channels
- 5 operational modes: Auto (Program Run), Sound Active, RGBAW+UV Dimmer, Static Colour and DMX-512 Mode
- 3 or 6-Section Pixel control
- Patent Pending Quick Align (Magnetic)
- Beam Angle: 40 degrees
- Flicker Free
- 4-Button DMX LED Display
- 35 built-in Colour Macros
- LED pulse & strobe effect
- Electronic Dimming: 0-100%
- Includes mounting brackets to mount on a wall or set on the ground
- Compatible with the ADJ UC IR wireless remote (included) and the Airstream IR APP
- Long Life LEDs (Rated at approximately 50,000 hrs.)
- Power Draw: 88W @ 120V.
- Linkable: DMX via 3-pin XLR cable; Power via IEC. Daisy-chain power (Up to 7 UB 12H fixtures max. @ 120V can be power linked)
- With Wired Digital Communication Network
- Multi-voltage operation: AC 100V-240V 50/60Hz
- Dimensions (LxWxH): 41.75” x 2.5” x 3.75”/ 1060 x 63 x 90mm
- Weight: 6 lbs./ 2.7 kg.
