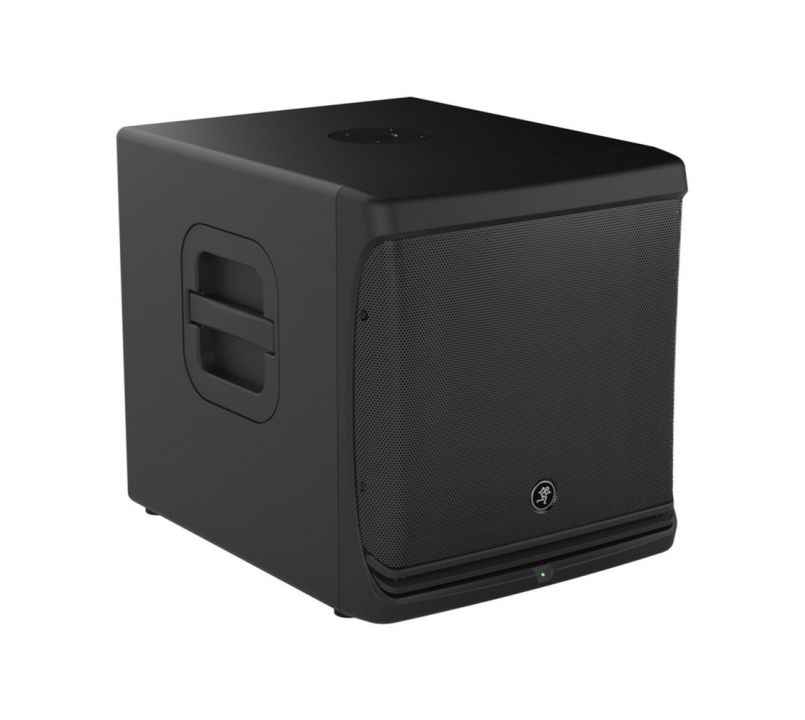

Mackie DLM12S Active Subwoofer

Availability:In stock

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Mackie DLM12S Active Subwoofer is the key to achieving the amazing sound you desire from such a compact loudspeaker is simple. You need tons of pure, raw power. Each DLM model features a staggering 2000 watts of power.

  • See full product description

The key to achieving the amazing sound you desire from such a compact loudspeaker is simple. You need tons of pure, raw power. Each DLM model features a staggering 2000 watts of power.

The powerful Class-D amplifiers are ultra-efficient with optimum heat dispersion and ample protection circuitry to keep things running smoothly night after night. DLM delivers maximum power in a minimal space with plenty of headroom to crank it up.

One of the most significant technological innovations of the DLM line is Mackie TruSource™ Technology. It's a potent combination of a brand new, completely unique, transducer design and powerful proprietary digital signal processing. Both full-range models feature the extremely compact TruSource driver, which combines the high and low-frequency driver into a vertically-aligned, common-magnet design that is ultra-efficient and extremely capable. The sonic reproduction is incredibly transparent across the entire frequency range. DLM Series loudspeakers deliver unmatched fidelity.

  • 2000W power via ultra-efficient Class-D amplification
  • High-power 12″, heat-treated woofer with 3″ voice coil
  • Ultra-low frequency extension hits hard down to 35 Hz
  • DLP Digital Processor
  • Powerful, one-touch digital processor with bright OLED screen
  • Precision digital crossover
  • Presets for use with DLM and SRM Series full-range loudspeakers
  • Variable crossover control for optimization with any loudspeaker
  • Six total XLR connects for flexible I/O control
  • Two line level inputs
  • Two full-range outputs for side fills, etc.
  • Two high-pass outputs for direct connection to DLM loudspeakers
  • Unmatched system control for professional applications
  • Alignment delay up to 300ms for delay stack, balcony, etc.
  • Three memory locations for instant venue setting recall
  • Smart Protect DSP dynamically protects amp/driver
  • Innovative ultra-compact design
  • Highest-output compact subwoofer on the market
  • Fit an entire DLM system in nearly any car
  • Stack them up for storage
  • Pole mount a DLM8 or DLM12
  • Extremely durable 15mm poplar cabinet
  • Rugged, powder-coated 20 gauge steel grille
  • Ridiculously lightweight (48 lbs. / 21.7 kg)

Acoutic Performance

  • Frequency Response (-10): 35Hz, User-selectable, 90Hz - 135Hz
  • Max peak SPL (@ 1m calculated): 128 dB
  • Crossover Point: User-selectable, 60Hz - 120Hz


  • Woofer Diameter: 12.0 in / 305 mm
  • Voice Coil Diameter: 3.0 in / 76 mm
  • Diaphragm Material: Paper
  • Magnet Material: Ferrite

Power Amplifier

  • Rated Power: 1000 watts rms / 2000 watts peak
  • Rated THD: <1%
  • Cooling: Multi-speed fan
  • Design: Class D

DLP Digital System Processing

  • Volume: Off (-∞ dB) to +10 dB
  • Crossover: Four preset xvr modes, one variable xvr mode
  • Delay: 0-300 ms
  • Memory: Three locations for instant venue setting recall and factory reset

Input / Output

  • Input Type: Female XLR balanced differential (stereo left/right)
  • Input Impedance: 20 kΩ balanced, 10 kΩ unbalanced
  • Full Range Outputs: Male XLR balanced (parallel with input)
  • High Pass Outputs: Male XLR balanced

Line Input Power

  • 220-240 VAC, 50-60 Hz, 250W
  • AC Connector: 3-pin IEC 250 VAC
  • Operating Temperature: 0-40°C / 32-104°F

Safety Features

  • Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
  • Display LEDs: Defeatable front power ON, Front load power limiter
  • Status info: Power supply voltage, Core temperatue

Construction Features

  • Cabinet: Extremely durable 15mm poplar
  • Finish: High durability black paint
  • Handles: One on each side
  • Grille: Powder-coated 20 gauge steel


  • Height: 17.9 in / 455 mm
  • Depth: 20.8 in / 529 mm
  • Width: 16.4 in / 417 mm
  • Weight: 48 lbs / 21.7 kg
