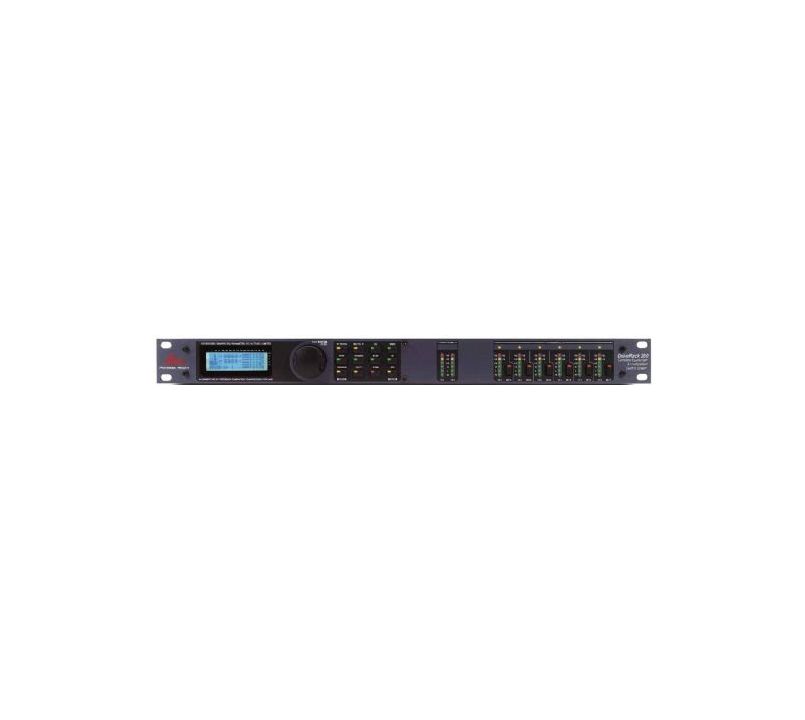

260 DriveRack

DriveRack® 260

COMPLETE EQUALIZATION AND LOUDSPEAKER CONTROL SYSTEM

The DriveRack 260 was designed to provide state-of-the-art signal processing, while maintaining a simple and intuitive control interface This goal has been realized From the powerful DSP modules to the multiple

control surfaces, the 260 provides all the processing and control necessary for both installation and live use Additionally, the Wizard function enables any user to quickly set up and use the 260 to its full potential by

streamlining the setup process and providing a menu-based setup procedure that includes system setup and confi guration, Auto-EQ, and

Advanced Feedback Suppression (AFS™)

The DriveRack 260 is based on the same unparalleled design philosophy as the other products in the DriveRack family, namely, to provide “Everything you need between the mixer and the power amps ” In keeping with that philosophy, the 260 offers 2 inputs and 6 outputs on XLR connectors Each input channel provides a choice of EQ, either a

9-band Parametric or a 28-band Graphic EQ Each input channel

also boasts two selectable insert processors with a selection of Notch Filtering, classic dbx® Compression, Auto Gain Control, Sub-Harmonic Synthesis, or our own patented Advanced Feedback Suppression (AFS™)

The DriveRack 260 also offers a confi gurable Delay with 2 7 seconds of total delay time The 260 provides full Bandpass and Crossover fi ltering and routing including Bessel, Butterworth and Linkwitz-Riley topologies

There is parametric EQ available on each output as well as dbx PeakStopPlus™ Limiting The 260 provides a full-time RTA for live sound applications, while contractors will appreciate its control inputs for wall-panel

logic and volume control.
