RANE SEVENTY A-TRAK Ltd Signature Edition DJ and Scratch Mixer

£1,599.00

Seen it cheaper? We match authorised UK dealers

Quick overview

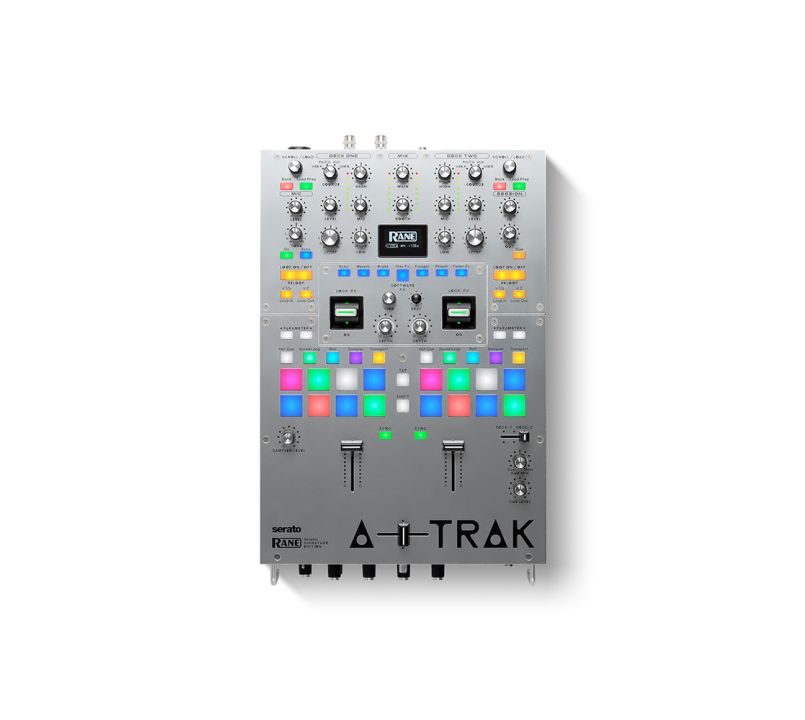

The RANE SEVENTY A-TRAK SIGNATURE EDITION is a carefully constructed rework of the renowned RANE SEVENTY DJ mixer. A-Trak himself was involved in the production of the mixer, handpicking the features, signature sound, and design of what he thinks to be the perfect mixer for the future of turntablist performance.

  • See full product description
Deko Pay

0% Finance: From only £36.13 per month!

The RANE SEVENTY A-TRAK SIGNATURE EDITION is a carefully constructed rework of the renowned RANE SEVENTY DJ mixer. A-Trak himself was involved in the production of the mixer, handpicking the features, signature sound, and design of what he thinks to be the perfect mixer for the future of turntablist performance.

MORE THAN JUST A BEAUTIFUL FACEPLATE

The SEVENTY A-TRAK SIGNATURE EDITION's exterior is finished in a beautiful silver that gleams beneath the aluminium-capped rotary-styled knobs and encoders. The mixer is decked out with custom fonts and elements, but the real magic is hidden beneath the surface. A-Trak created the mixer's sound curve and frequency response, enhancing the depth of the low-end to ensure that the high-quality audio matches his characteristic sound. Simply told, the SEVENTY A-TRAK SIGNATURE EDITION is unlike anything else you've ever heard!

Fader FX for Boosting Performance

“Every great piece of kit, in my opinion, should have a signature feature,” A-Trak explains, “something that sets it apart from the rest.” Fader FX is a new mixer function that turns channel volume faders into linear controllers for performance effects like Filter, Reverb, and Delay.

There are four sorts of oscillators: roll, pitch, ring modulator, and four varieties of Oscillators. DJs may modify root notes, octaves, and more in the settings of these Fader FX options, creating a unique collection of tools to take with them to their next performance or DJ battle.

Built on the RANE SEVENTY'S Solid Foundation

The RANE SEVENTY, famed for its intuitive layout and best-in-class performance, served as the cornerstone for the SEVENTY A-TRAK SIGNATURE EDITION. The SEVENTY A-TRAK SIGNATURE EDITION features the same solid-steel structure that makes the SEVENTY a battle-tested mixer, as well as Rane's quality MAG FOUR faders and MPC-style Performance Pads. The SEVENTY A-TRAK SIGNATURE EDITION includes all of the features that made the original SEVENTY the mixer of choice for discerning DJs, such as easy access to Serato's Scratch Bank, external crossfader tension adjustment, and six post-fader internal Flex FX (including Fader FX) that can be layered with Serato DJ Pro's Software FX.

  • Exclusive A-Trak designed silver solid-steel exterior with premium rotary-style aluminium-capped knobs
  • Up-fader controlled Fader FX with 4 tone generators for advanced performance creativity
  • Signature A-Trak sound curve with custom low-end frequency response and industry-leading signal-to-noise ratio of 114dB
  • Special 10” Serato Sticker Lock vinyl is included along with a custom-designed sticker set
  • (6) post-fader internal Flex FX stackable with Serato DJ Pro software FX
  • Dual diecast, rotatable aluminium FX paddles
  • (3) MAG FOUR contactless faders with external control for crossfader tension-adjustment
  • 16 performance pads with independent pad modes for each channel (includes Scratch Bank support)
  • Dedicated SYNC buttons with the option to change to Instant Doubles or Silent Cue
  • (32) MIDI-Assignable Pads
  • Dedicated loop controls
  • Dual USB connections for DJ handoffs
  • RANE TWELVE Connection Hub
  • Dual microphone inputs
  • Library browse and track selection controls

DIGITAL AUDIO

  • Converters: AKM High Definition Audio; 24-bit PCM, 48 kHz
  • Digital Signal: Processing 32-bit, Floating Pont, Double precision


Dynamic Range (A-weighted, unity gain)

  • ADC 114 dB
  • DAC 114 dB
  • CD Input to Analogue Output 114 dB
  • CD Input to USB Output 114 dB
  • USB Input to Analogue Output 114 dB


INPUTS

  • Microphone 1/2 Analogue Gain 30 dB (Mic), 4.75 dB (Line)
  • (Combo XLR/1/4” [6.35 mm] Maximum Input 0.126 Vrms (Mic), 2.3 Vrms (Line)
  • TRS, Mic/Line switchable) Gain Trim Off to +20 dB (unity at centre)
  • Aux Inputs 1/2 Maximum Input 4 Vrms
  • (RCA stereo pairs) Dynamic Range (A-weighted) 114 dB


CD/Phono Inputs 1/2(RCA stereo pairs, switchable)

  • CD Line
  • Maximum Input 4 Vrms
  • Dynamic Range (A-weighted) 114 dB
  • Phono RIAA
    RIAA Curve
    +0.1/-0.2 dB
  • Gain (@ 1 kHz) 30 dB
  • Maximum Input (@ 1 kHz) 126 mV


Session Input (RCA stereo pair)

  • Maximum Input (@ 1kHz) 106mV
  • Dynamic Range (A-weighted) 102dB


OUTPUTS

  • Main Outputs (XLR)
  • Frequency Response 20 Hz to 20 kHz (± 0.2 dB)
  • Maximum Output 8 Vrms
  • THD+N (@ 1 kHz, 4 Vrms) 0.002%
  • Booth Outputs (1/4”/6.35 mm TRS)
  • Frequency Response 20 Hz to 20 kHz (± 0.2 dB)
  • Maximum Output 8 Vrms
  • THD+N (@ 1 kHz, 4 Vrms) 0.002%
  • Session Outputs (RCA stereo pair)
  • Frequency Response 20 Hz to 20 kHz (± 0.2 dB)
  • Maximum Output 4 Vrms
  • THD+N (@ 1 kHz, 2 Vrms) 0.002%
  • Headphone Outputs (1/4”/6.35 mm and 1/8”/3.5 mm TRS)
  • Maximum Output Voltage 4 V (no load)
  • THD+N (@ 1 kHz, 2 Vrms) 0.003%
  • Output Power 96 mW (50 ohms)
  • Controls On/Off muting


GENERAL

  • Display 1.6” OLED (diagonal)
  • Pads (16) velocity-sensitive multi-colour back-lit pads (8 per deck, 10 modes each)
  • Faders (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)

Connectors

  • (2) XLR outputs (Main)
  • (2) 1/4” (6.35 mm) TRS outputs (Booth)
  • (4) RCA stereo input pairs (Deck 1–2)
  • (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
  • (1) RCA stereo input pair (Session)
  • (1) RCA stereo output pair (Session)
  • (1) 1/4” (6.35 mm) TRS output (Headphones)
  • (1) 1/8” (3.5 mm) TRS output (Headphones)
  • (1) 1/4” (6.35 mm) TRS input (Footswitch)
  • (2) USB Type-A ports (Deck 1–2 USB Controllers)
  • (2) USB Type-B ports
  • (1) IEC power cable input


Power

  • Connection: IEC
  • Voltage: 100–240 V, 50/60 Hz
  • Consumption: 30 W


Dimensions

(width x depth x height) 11.2” x 17.5” x 4.13” 285 x 445 x 105 mm


Weight

  • 12.3 lbs.
  • 5.6 kg
