ELX 4000 Power Amplifier (Archived)

Availability:Out of stock
ELX 4000 Power Amplifier

Seen it cheaper? We aim to match authorised UK dealers

Quick overview
  • See full product description

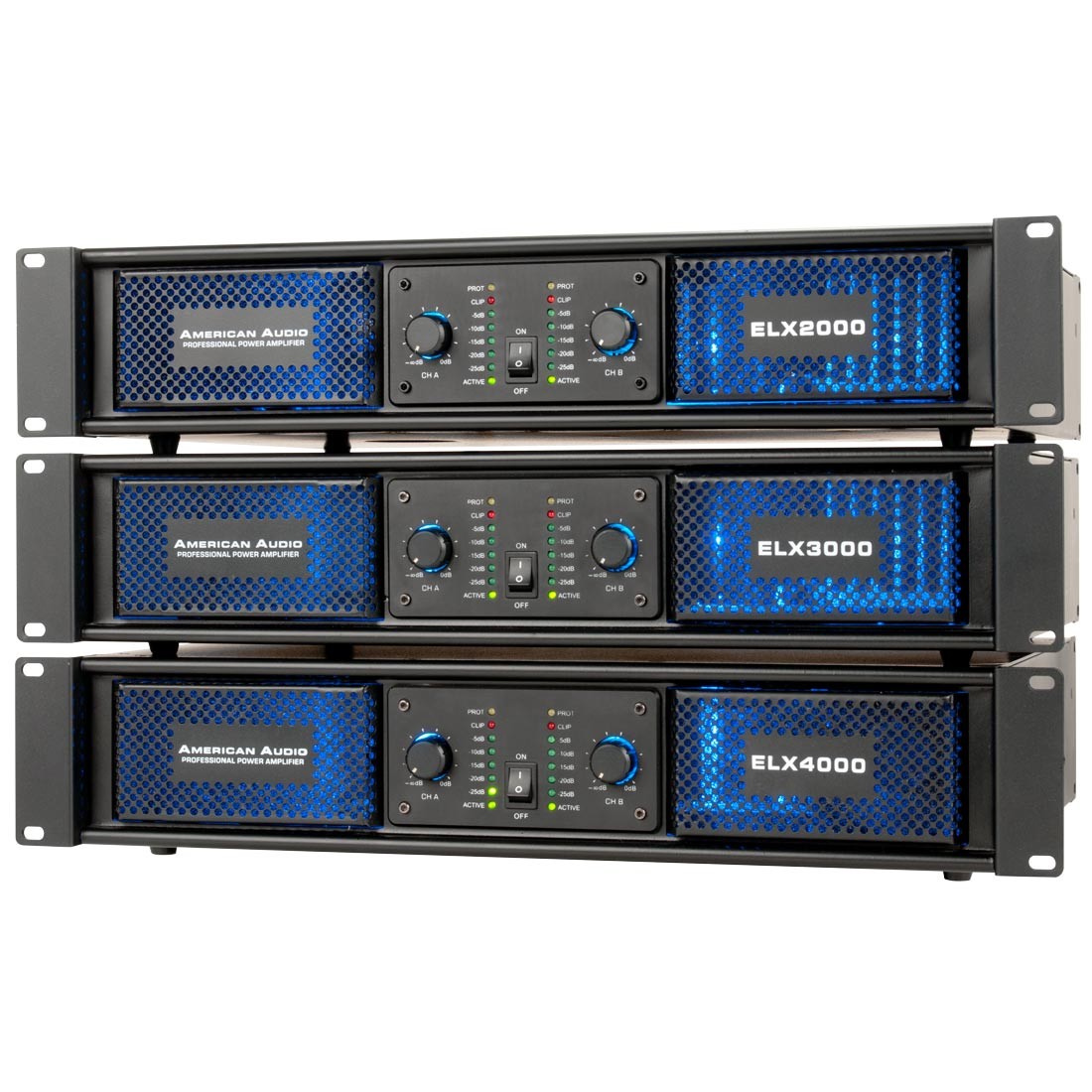

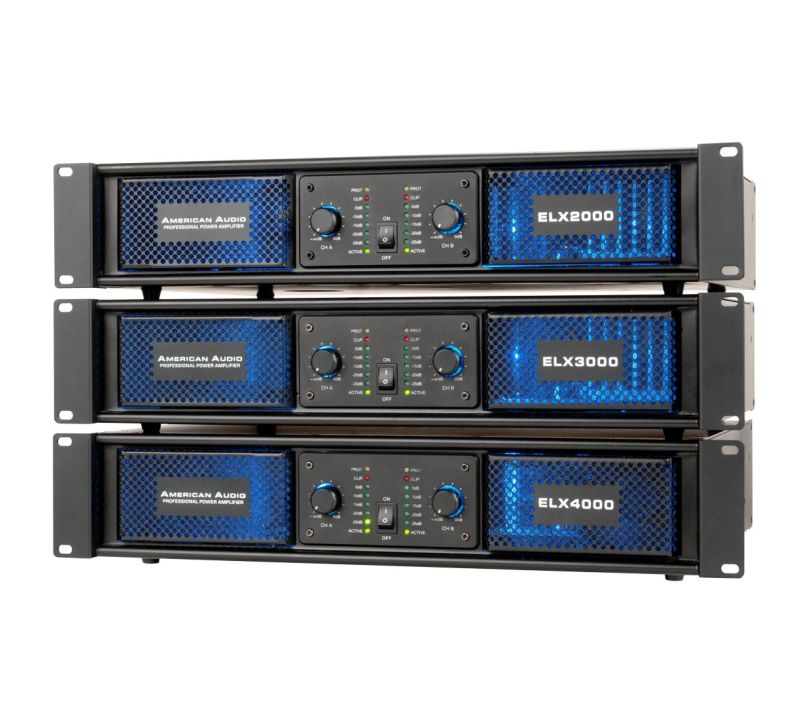

The American Audio ELX Power Amplifier Series offers professional features at an affordable price. It features pro In/Out/Thru connections, has a high powered fan to keep the amplifier cool, and has an unique illuminated crystal blue glowing front panel.

  • The ELX4000 offers 800W RMS @ 8 Ohms (Bridged Mono), a Frequency Response of 20Hz - 20KHz (+/-1.0dB @ 8 Ohms) and features Balanced XLR Inputs and Speakon and Binding Posts for outputs.


Output Power:
    2x 260W RMS Per Channel @ 8 Ohms, 1K Hz, 1% THD
    2x 400W RMS Per Channel @ 4 Ohms, 1kHz, 1% THD

(Bridged Mode, Mono)
    800W RMS @ 8 Ohms, 1kHz, 1% THD


-    Total Harmonic Distortion: Less Than 0.1% (20Hz – 20kHz @ 8 Ohms)
-    Frequency Response: (+/-1.0dB, @rated output Power, 8 Ohms): 20Hz – 20K Hz
-    Slew Rate: 20V Per usec
-    Damping Factor @ 8 Ohm: 150
-    Impedance:  20 K Ohms balanced
-    Cooling System: 1 individual fan
-    Special Feature: Ground Lift
-    Input: Balanced XLR
-    Outputs: Speakon, Binding Post
-    Dimensions (LxWxH): 483 x 345 x 88mm 2 rack mount spaces
-    Weight:  12 Kg.

Got a question or need assistance? Get in touch, we're happy to help.

02380 784500.
