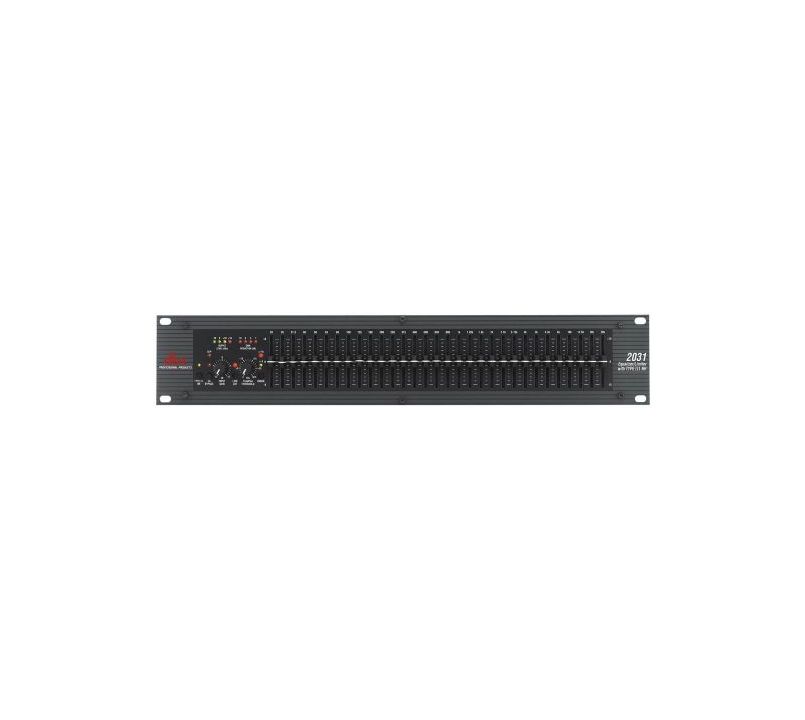

The DBX 2031 Single Channel 31 Band Equalizer / Limiter 2U Rack 1/4 Trs, Male Xlr, And Barrier Terminal Strip Ouput Connections. Powerful yet affordable mono EQ with limiter and noise reduction.

The DBX 2031 is a single-channel, 31-band, 1/3-octave equalizer. The PeakPlus limiter`s threshold ranges from 0dBu to +20dBu and can transparently tame the wildest hits or subtlest nuances of any signal. The 4 segment LED bar graph for both gain reduction and output level offers the most comprehensive visual feedback available. Also includes status LEDs for all settings on the front panel. XLR, barrier strip, and 1/4 inch jack connectors; 45mm nylon sliders; and 12dB input gain stage provide pro flexibility and performance.

Features

* Revolutionary instant encode/decode Type III® Noise Reduction in-circuit at the push of a button. Increases S/N ratio by up to 20dB

* Patent-pending PeakPlus® Limiter threshold range from 0dBu to +24dBu (off) can transparently tame the wildest hits or the subtlest nuances of any signal

* An extremely high quality EQ, patent-pending Type III Noise Reduciton, and the elegant new PeakPlus Limiter all in one great sounding box

* Four segment LED bargraph for BOTH Gain Reduction AND Output Level offers the most comprehensive visual feedback available

* Status LEDs offer visual feedback for all settings on the front panel

Specification

Input

* Connectors: 1/4 TRS, female XLR (pin 2 hot), and barrier terminal strip

* Type: Electronically balanced/unbalanced, RF filtered

* Impedance: Balanced 40k ohm, unbalanced 20k ohm

* Max Input Level: >+21dBu balanced or unbalanced

* CMRR: >40dB, typically >55dB at 1kHz

Outputs

* Connectors: 1/4 TRS, male XLR (pin 2 hot), and barrier terminal strip

* Type: Impedance-balanaced/unbalanced, RF filtered

* Impedance: Balanced 200 ohm, unbalanced 100 ohm

* Max Output Level: >+21dBu balanced/unbalanced into 2k or greater, >+18dBm balanced/unbalanced (into 600)

System Performance

* Bandwidth: 20Hz to 20kHz, +/-0.5dB

* Frequency Response: <10Hz to >50kHz, +0.5/-3dB

* Dynamic Range: 109dB 115dB

* Noise Reduction In: (+/-6 and +/-15dB range):

* Signal-to-Noise: >102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth

* Dynamic Range: >120dB, unweighted

* Noise Reduction Out: (+/-6dB range):

* Signal-to-Noise: >94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth

* Dynamic Range: >120dB, unweighted

* Noise Reduction Out: (+/-15dB range):

* Signal-to-Noise: >90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth

* Dynamic Range: >108dB, unweighted

* THD + Noise: <0.04%, 0.02% typical at +4dBu, 1kHz

* Noise Reduction: Up to 20dB of dynamic broadband noise reduction

Function Switches

* Type III NR: Activates dbx® Type III® Noise Reduction

* EQ Bypass: Bypasses the Graphic Equalizer section in the signal path

* Low Cut (recessed): Activates the 40Hz 18dB/octave Bessel high-pass filter

* Range (recessed): Selects either +/- 6dB or +/-15dB slider boost/cut range

Indicators

* Output Level Meter: 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu

* Gain Reduction Meter: 4-LED bar graph (all Red) at 0, 3, 6, and 10dB

* Type III® NR Active: Yellow LED

* EQ Bypass: Red LED

* Clip: Red LED

* Low Cut Active: Red LED

* +/-6dB range: Yellow LED

* +/-15dB range: Red LED

Power Supply

* Operating Voltage: 100VAC 50/60Hz, 120VAC 60Hz, 230VAC 50/60Hz

* Power consumption: 12W

* Main Connection: IEC receptacle

Physical

* Dimensions: 3.5 H X 19 W X 7.9 D (8.9cm x 48.3cm x 20.1cm)

* Weight: 8.5 lbs. (3.9 kg)

* Shipping Weight: 9.5 lbs. (4.3 kg)
