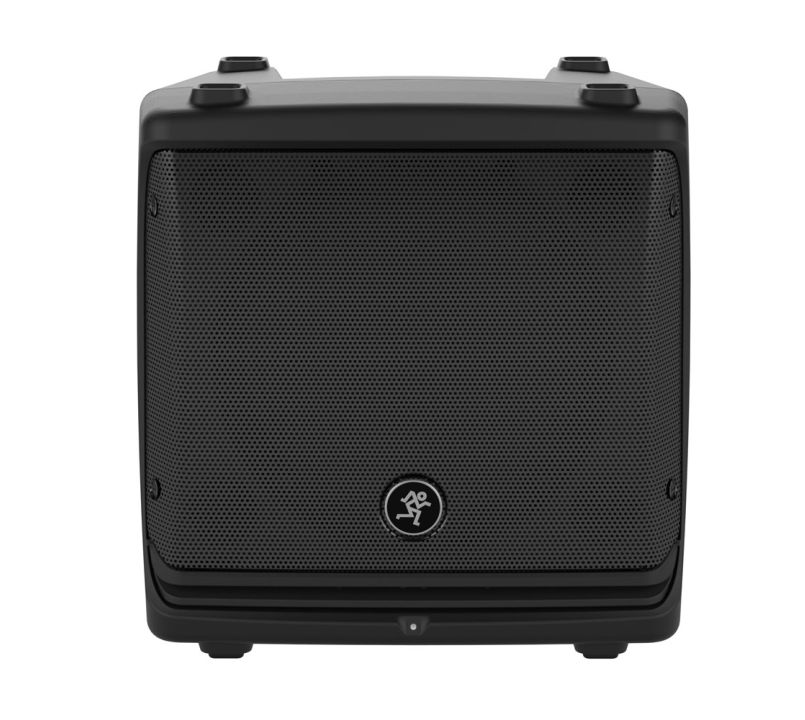

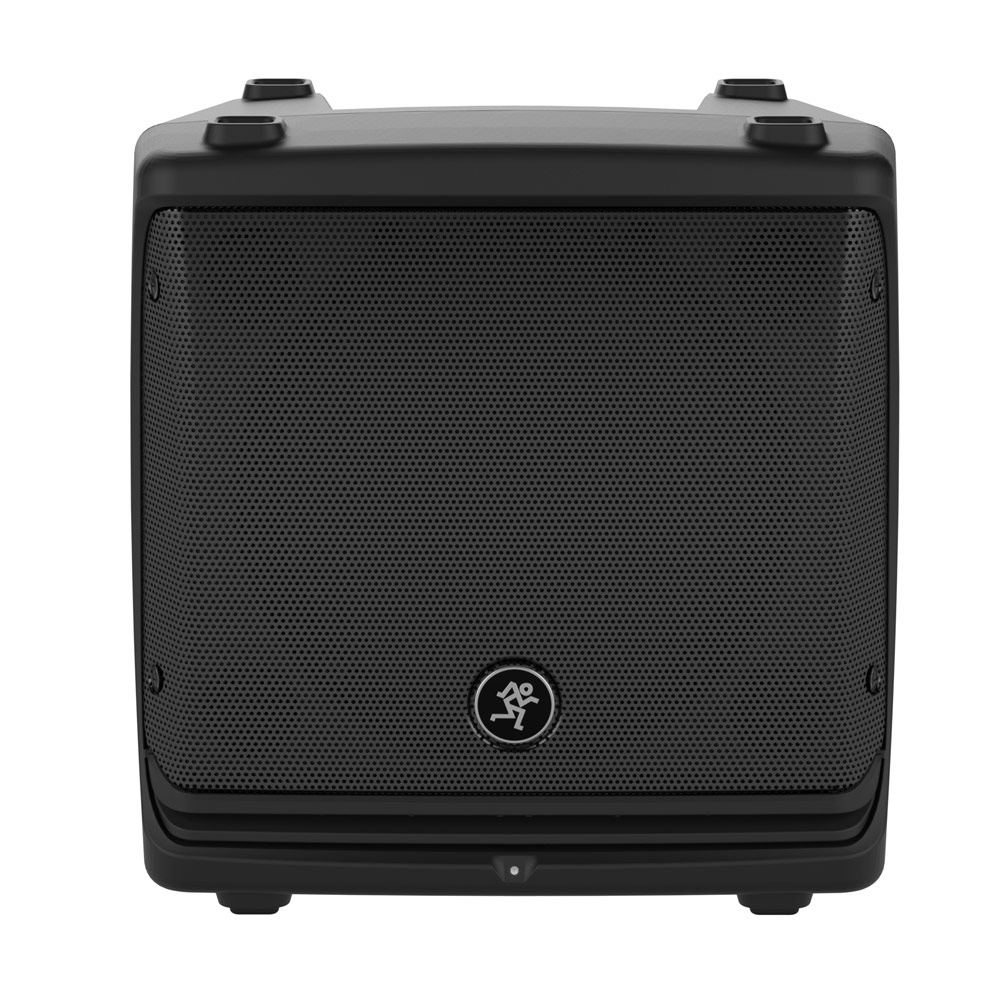

Mackie DLM8 Active Speaker

BACK-ORDER - Estimated Stock Arrival: 15-04-2024
SKU
2037869-03
£894.00

dividebuy-logoCheck your eligibility

Fast check - won't affect your credit rating.

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

The Mackie DLM8 Active Speaker is the key to achieving the amazing sound you desire from such a compact loudspeaker is simple. You need tons of pure, raw power. Each DLM model features a staggering 2000 watts of power.

  • See full product description

The Mackie DLM8 Active Speaker is the key to achieving the amazing sound you desire from such a compact loudspeaker is simple. You need tons of pure, raw power. Each DLM model features a staggering 2000 watts of power.

The powerful Class-D amplifiers are ultra-efficient with optimum heat dispersion and ample protection circuitry to keep things running smoothly night after night. DLM delivers maximum power in a minimal space with plenty of headroom to crank it up.

One of the most significant technological innovations of the DLM line is Mackie TruSource™ Technology. It's a potent combination of a brand new, completely unique, transducer design and powerful proprietary digital signal processing. Both full-range models feature the extremely compact TruSource driver, which combines the high and low-frequency driver into a vertically-aligned, common-magnet design that is ultra-efficient and extremely capable. The sonic reproduction is incredibly transparent across the entire frequency range. DLM Series loudspeakers deliver unmatched fidelity.


  • 2000W power via ultra-efficient Class-D amplification
  • TruSource™ Technology
  • Mackie designed, vertically-aligned, common-magnet TruSource driver
  • 8″ LF woofer / 1.75″ HF compression driver
  • Incredibly compact, lightweight design
  • Powerful TruSource DSP delivers seamless clarity, consistent dispersion and unmatched fidelity
  • DL2 Integrated Digital Mixer
  • Powerful, one-touch digital mixer with bright OLED screen
  • Two highly-versatile input channels with FX
  • Independent channel level, 3-band EQ and effects control
  • 16 great-sounding channel effects include reverb, chorus and delay
  • XLR/TRS combo and dual RCA connectors
  • Handles mic, line, stereo and instrument signals
  • Unmatched system control for professional applications
  • Multi-band feedback destroyer
  • Six speaker modes deliver the perfect voicing for your application
  • Alignment delay up to 300ms for delay stack, balcony, etc.
  • Three memory locations for instant venue setting recall
  • Smart Protect DSP dynamically protects amp/driver
  • Innovative ultra-compact design
  • 1/3 smaller than a traditional 2-way
  • Fit an entire DLM system in nearly any car
  • Stack them up for storage
  • Pole-mountable on tripod or atop DLM12S using SPM300 speaker pole
  • Flyable via standard M10 rigging hardware
  • Wall-mount them using SWM300 articulated arm for stealthy, powerful install system
  • Roadworthy PC-ABS cabinet with  pro black finish and ergonomic top carry handle
  • Rugged, powder-coated 20 gauge steel grille
  • Integrated kickstand delivers perfect angle for personal monitor use
  • Ridiculously lightweight (22 lbs. / 10kg)

Acoustic Performance

  • Frequency Response (-10 dB): 65 Hz - 20 kHz
  • Max peak SPL (@ 1m calculated): 125 dB
  • Crossover Point: 1.6 kHz
  • Dispersion: 90° conical

Equalization

  • Low Shelving: ±15 dB @ 80 Hz
  • Mid-Peaking: ±15 dB @ 2.5 kHz
  • High Shelving: ±15 dB @ 12 kHz
  • Increments: ±3 dB

High-Frequency Section

  • Voice Coil Diameter: 1.75 in / 44 mm
  • Horn Entry Diameter: 1.0 in / 25 mm
  • Diaphragm Material: Polyimide Film
  • Magnet Material: Ferrite

Low-Frequency Section

  • Woofer Diameter: 8.0 in / 203 mm
  • Voice Coil Diameter: 2.0 in / 51 mm
  • Diaphragm Material: Paper
  • Magnet Material: Ferrite

Power Amplifiers

  • System Power Amplification
    • Rated Power: 1000 watts rms / 2000 watts peak
  • Low Frequency Power Amplifier
    • Rated Power: 500 watts rms / 1000 watts peak
    • Rated THD: < 1%
    • Cooling: Multi-speed fan
    • Design: Class D
  • High Frequency Power Amplifier
    • Rated Power: 500 watts rms / 1000 watts peak
    • Rated THD: < 1%
    • Cooling: Multi-speed fan
    • Design: Class D

DL2 Digital Mixer System Processing

  • EQ: Six speaker modes
  • Alignment delay: 0-300 ms
  • FX: 16 presets
  • Multi-band feedback destroyer: On / Off / CLear / Hold
  • Memory: Three locations for instant venue setting recall and factory reset

Input / Output

  • Channel 1
    • Mic: 3.3 kΩ balanced
    • Line: 20 kΩ balanced / 10 kΩ unbalanced
    • 1/4" TRS: 16 kΩ balanced / 8 kΩ unbalanced
  • Channel 2
    • XLR Line: 20 kΩ balanced / 10 kΩ unbalanced
    • 1/4" TRS [Hi-Z instrument]: 1 MΩ balanced
    • RCA: 25 kΩ unbalanced
  • Thru: Male XLR balanced

Power

  • 220-240 VAC, 50-60 Hz, 250W
  • AC Connector: 3-pin IEC 250 VAC
  • Operating Temperature: 0-40°C / 32-104°F

Safety Features

  • Input Protection: Peak and RMS limiting, power supply and amplifier thermal protection
  • Display LEDs: Defeatable front power ON, Front load power limiter
  • Status Info: Power supply voltage, Core temperature

Construction Features

  • Cabinet: PC-ABS [High-strength]
  • Finish: High durability black paint
  • Handle: One on top
  • Grille: Powder-coated 20 gauge steel
  • Fly Points: Three M10 x 17mm
  • Monitor Angle: 50° (using integrated kickstand)

Mounting Methods

  • Floor mount, pole mount, wall mount or fly via three integrated M10 mounting points.

Other

  • Height: 12.3 in / 313 mm
  • Depth: 11.9 in / 302 mm
  • Width: 12.1 in / 307 mm
  • Weight: 22 lbs / 10 kg
