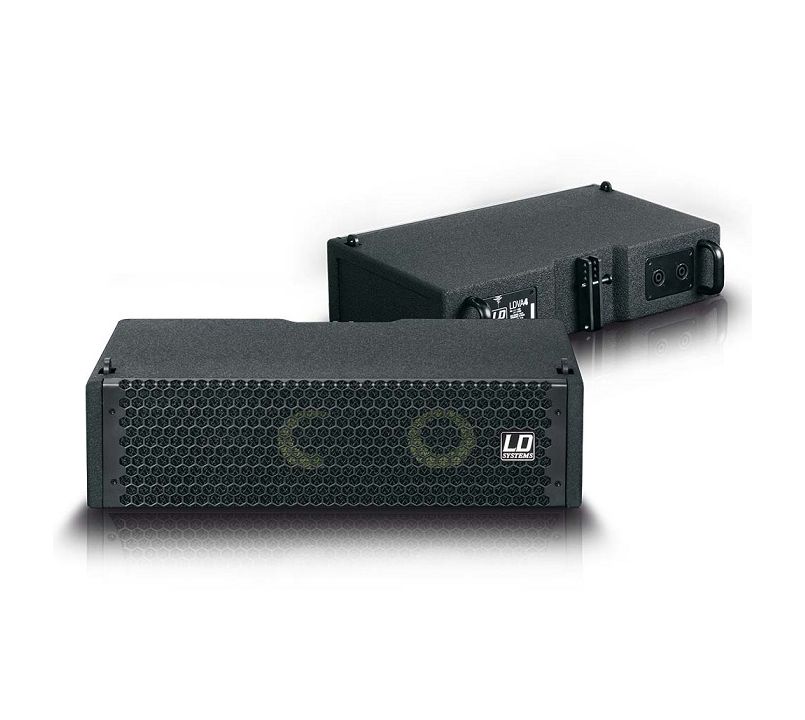

LD Systems VA4 Line Array Speaker is a ultra lightweight, ultra compact 2 x 4 inch line array speaker cabinet with incredible sound quality.
- See full product description
- Buy 2 for £839.00 each and save 2%
LD Systems VA4 Line Array Speaker is a ultra lightweight, ultra compact 2 x 4 inch line array speaker cabinet with incredible sound quality.
The powerful dual 4" woofers with high efficiency neodymium magnets and Kevlar cones have a power handling capacity of 200W continuous. Coupled to a 1" waveguide, the neodymium high frequency compression driver features a 1.35" voice coil, protection circuit and a 75W continuous rating. Individual element distribution is 120° x 10° over a wide frequency range.
The VA4 cabinet is made from 12mm birch ply painted in a robust, water-resistant Dura-Coat LX. It is equipped with Neutrik NL-4 connectors, rigging hardware and easy angle adjustment from 0° to 7.5° in three 2.5° steps. The VA4 is created both for flying and ground stack applications.
For low frequency extension the dual 12 Bandpass subwoofer V212B and the V215B 2x15 Bass reflex subwoofer flawlessly complement the VA4. Ease GLL-files and controller setups for the LD Systems DPA260 are available online for optimum array configuration and easy start-up.
- Product type: Line Array Speaker
- Type: passive
- Design: 2-way speaker
Woofer characteristics
- Low/mid driver dimensions: 2 x 4"
- Low/mid driver dimensions (mm): 2 x 101.6mm
- Woofer type: Kevlar
- Woofer magnet: Neodymium
- Woofer brand: Custom-made
HF Driver characteristics
- Horn: Waveguide
- HF driver dimensions: 1"
- HF driver dimensions (mm): 25.4mm
- HF driver magnet: Neodymium
- HF driver brand: Custom-made
- HF driver voice coil: 1.35"
- HF driver voice coil (mm): 34.3mm
Other Features
- Dispersion (H x V): 120 x 10°
- Load rating (RMS): 200W
- HF driver RMS power: 75W
- Frequency response: 80 - 19000Hz
- Min. crossover frequency (Hz): 2100Hz
- SPL (1W/1m): 90dB
- Max. SPL: 113dB
- Impedance: 16Ohm(s)
- Loudspeaker protection: HF Driver
- Tilt angle: 0 / 2.5 / 5 / 7.5°
- Loudspeaker inputs: Neutrik Speakon, 4-pole
- Speaker output connections: Neutrik Speakon, 4-pole
- Cabinet material: 18 mm Birch Plywood
- Cabinet surface: Dura Coat LX Texture Paint
- Cabinet construction: vented
- Width: 480mm
- Height: 139mm
- Depth: 261mm
- Weight: 9.6kg
- Features: Steel handles, Integral rigging hardware
