160AD

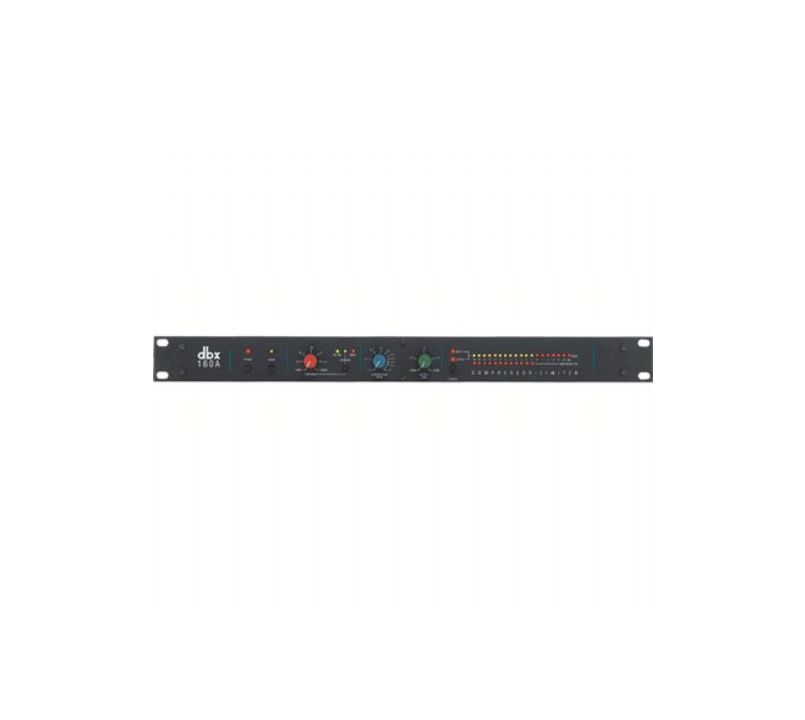

DBX 160AD Compressor / Limiter

Since its introduction in the mid 1970`s, the dbx 160 series has been the world`s most popular line of audio compressors. After the classic 160 (which is still used daily in many world class studios), came the 165, the 160X and the 160XT. The 160X/XT were the models that truly became the industry standard. Solid construction, fool proof operation, great sound, at-a-glance metering and a bulletproof output stage all contributed to its popularity with musicians, recording studios, consultants and installers, and broadcast media production people alike.

The dbx® 160A is a legendary dbx® 160 family of compressor/limiters. The same classic sound, easy set-up and no compromise metering is now married to an improved signal path and stronger chassis design. The result is industry standard compressor/limiter which is digital-ready and road tough.

Featuring switch-selectable OverEasy® and Hard Knee compression curves along with extremely wide-ranging threshold, ratio and output controls, the dbx 160A is up to any task. True RMS level detection provides the most natural-sounding dynamics processing available, from subtle compression to brick wall peak limiting. Choose low ratios and OverEasy® compression to transparently smooth out fluctuating vocal and instrumental levels. Or use the 160A`s Hard Knee compression and high ratios (up to and beyond :1 and over 60dB gain reduction) for bombproof protection against overload distortion in digital recording, P.A. systems and broadcast signals. The 160A is fully compatible with +4/-10dB and balanced/ unbalanced systems, and its electronically balanced output stage is an outstanding line driver for long cable runs (an output transformer is optional). The 19-segment, switchable input/ output LED metering can be easily calibrated to any operating level. 12-segment gain reduction LEDs provide precise analysis at a glance.

The dbx® 160A`s unique INFINITY + inverse-compression mode actually decreases the audio output level below unity gain when the input exceeds threshold, a real lifesaver for correcting overbearing vocal choruses and controlling runaway house mix levels. A detector input can be used with an equalizer for de-essing sibilant vocals and selectively smoothing out boomy notes on acoustic guitar and bass. And two 160As can be stereo-coupled to process an entire mix or instruments mic`d in stereo, without shifting the left/right image. Its musical sound, easy operation and unequaled versatility made the original dbx® 160 a world standard. The 160A follows that tradition, while meeting the challenges of a digital world.

Features:

* OverEasy or classic hard knee compression with dbx`s ultra-musical program dependent attack and release times

* Compression Ratio variable from 1:1 through infinity:1 to negative compression

* Precision dual RMS LED display monitors input or output and gain reduction over a wide range and calibrates for different operating levels

* Over 60dB of gain reduction available

* Exclusive Infinity+ compression allows negative compression

* lndependent balanced and unbalanced outputs can drive 600½ loads to +24dBm simultaneously. New floating balanced output stage drives any

* Optional output transformer capable

* Strappable with another 160A for true RMS stereo summing operation

* Made in the USA
