Concorde Serato S-120

Availability: Out of stock
SKU
Ortofon Concorde Serato S-120
£110.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

This Product Is No Longer Available - Please click HERE to view our latest Ortofon products.

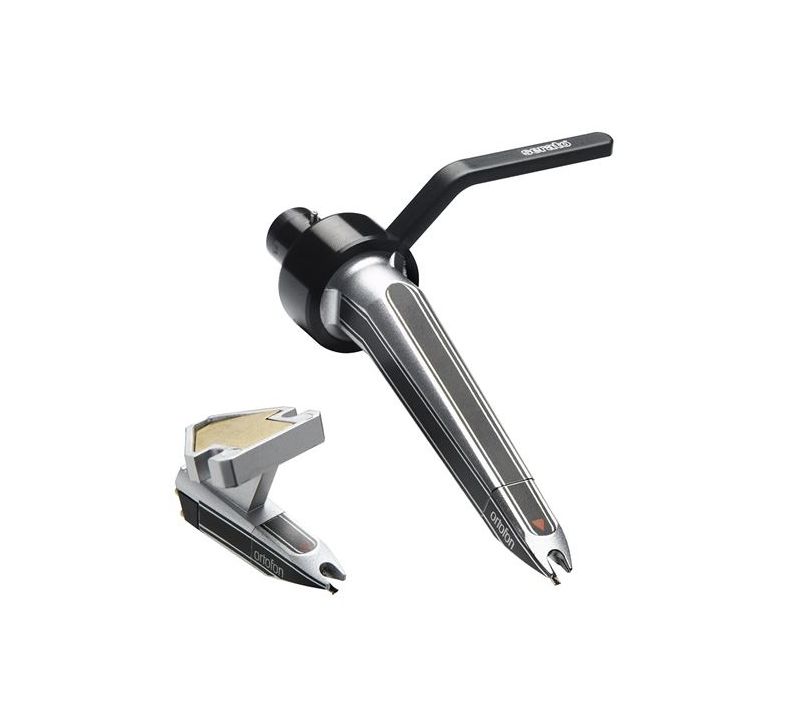

Ortofon Concorde Serato S-120 is a superior cartridge that's been co-developed with Serato. It uses an innovative technology called asymmetric suspension that takes this cartridge to the next level.

  • See full product description

This Product Is No Longer Available - Please click HERE to view our latest Ortofon products.

Ortofon Concorde Serato S-120 uses an innovative, breakthrough technology called asymmetric suspension that’s able to take the cartridge performance a level up and gives DJs maximum freedom in their performance.
Co-developed by Serato the superior tracking force keeps the S-120 in the vinyl groove even under extreme performance conditions as well as an excellently low level of record wear which helps protect your precious vinyl. On top of all these fantastic features the S-120 provides a level of sound quality unparalleled by any other modern DJ cartridge.

  • Output voltage at 1000Hz, 5cm/sec: 10 mV
  • Channel balance at 1kHz: 1,5 dB
  • Channel separation at 1kHz: 20 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency range at -3dB: 20-18.000 Hz
  • Frequency response: 20-18.000 Hz +3/-2 dB
  • Tracking ability at 315 Hz at recommmended tracking force: 120 μm
  • Compliance, dynamic lateral: 11 μm/m N
  • Stylus type: Spherical
  • Stylus tip radius: R 18 μm
  • Tracking force range: 1,5-10,0 g (15-100 mN)
  • Tracking force recommended: 4,0 g (40 mN)
  • Internal impedance, DC resistance: 1680 Ohm
  • Internal inductance: 920 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 200-600 pF
  • Concorde weight: 18,5
  • OM cartridge weight: 5,0 g
