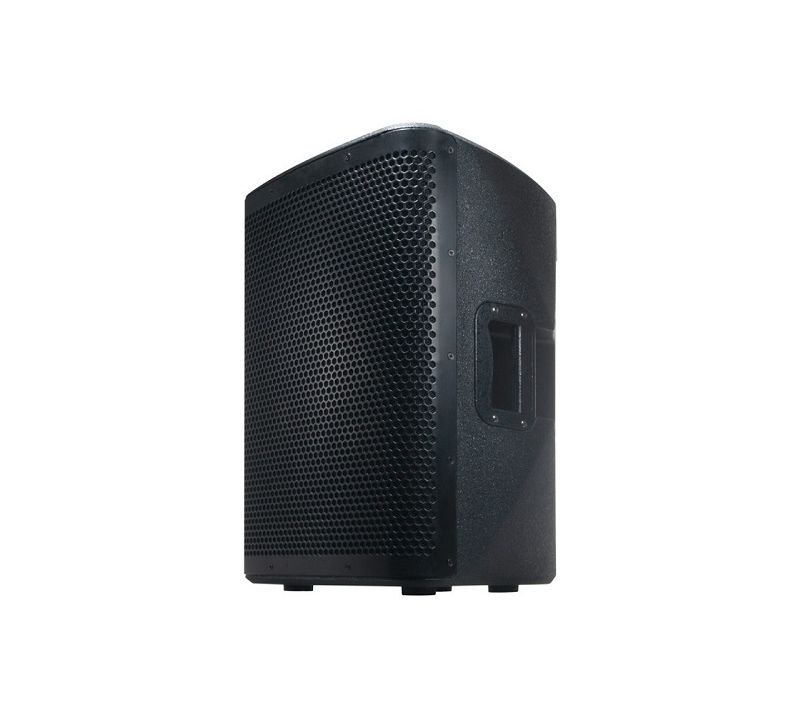

American Audio CPX12A 500W 12" Active Speaker (Archived)
Availability:Out of stock
SKU
American Audio CPX12A 500W 12" Active Speaker
£235.00
Seen it cheaper? We aim to match authorised UK dealers
Quick overview
The American Audio CPX12A is a 12 inch 2-way, high efficiency speaker with a 500w built in bi-amplified class D amplifier.
- See full product description
The American Audio CPX12A is a brand new highly efficient 2-way speaker with a built in 500w bi-amplified class D amplifier. The Speaker has high quality XLR and RCA inputs with XLR and TRS throughputs allowing you to connect multiple speakers together with a time aligned electronic crossover alongside a thermal and clipping protection in order to protect the drivers from blowing. This CPX12A is encased in a heavy duty steel grill with ergonomic handles in order to easily transport them, along with 5 m8 rigging points as well as being stand mountable allowing for this speaker to be used in multiple set ups.
American Audio CPX12A Features:
- 2-way Speaker with High Efficiency Class D Amplifier.
- 500W Built-in Bi-amplifier
- Time Aligned Electronic Crossover
- 5 M8 Rigging points
- Stand Mountable
- Heavy Duty steel grill
- Ergonomic handles
- Power and Clip LED Indicators
- XLR and RCA inputs
- XLR and TRS throughputs
- Clipping and Thermal Protection
American Audio CPX12 Tech Spec:
Specifications:
- S/N Ratio: Line
- 00dB, Mic 80dB
- Frequency Response: 30 Hz – 18 kHz
- Nominal Coverage: 90º x 60º
- Low Frequency: 12" (312mm), 2.5" (65mm) Voice Coil
- High Frequency: 34mm Voice Coil, 1"(25mm) Throat
- Input Sensitivity: 0.5V
- Output Sensitivity: 94dB(1m/1w¬¬)
- Max. SPL: 114dB
- Balanced Input Impedance: Line 20KΩ, Mic 3.6KΩ
- Unbalanced Input Impedance: Line 10KΩ, Mic 1.8KΩ
Crossover:
- Low Pass: 2nd order filter 2.7KHz
- Low Cut: 2nd order filter 30Hz
Channel Equalizer:
- Bass: 100Hz +/- 12dB
- Treble: 10KHz +/- 12dB
- Multi Voltage Switch: AC 115V/60Hz or 230V/50Hz
- Dimensions (LxWxH): 378 x 360 x 580mm
- Weight: 21.4 kg.
