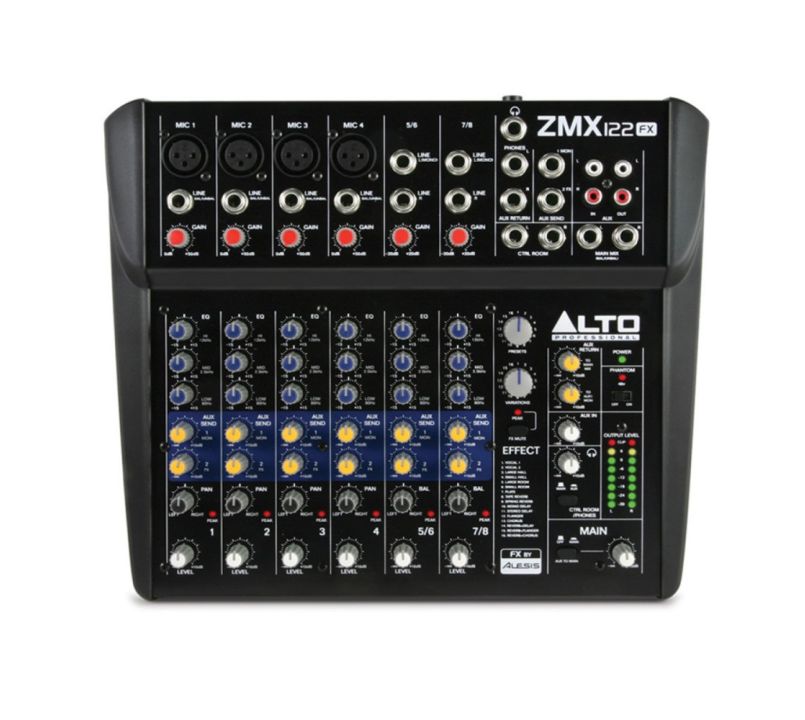

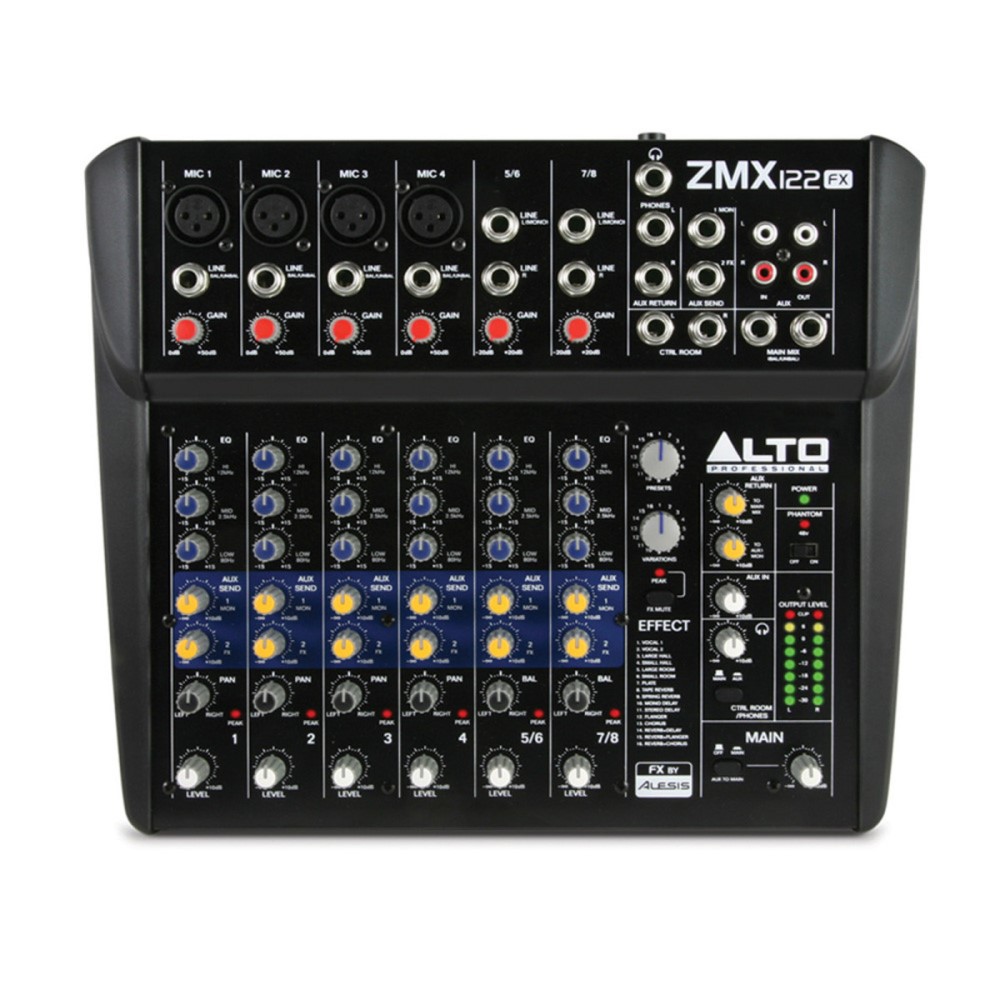

Alto Zephyr ZMX122FX 8-Channel Compact Mixer with FX

Availability: Out of stock
SKU
Alto Zephyr ZMX122FX
£149.00

Seen it cheaper? We aim to match authorised UK dealers

Quick overview

This product is no longer available, please click here to view the best alternative mixers.

The Alto Zephyr ZMX122FX is an 8-channel, 2-bus mixer that is perfect for live performance situations and provides you with four microphone inputs with 48v phantom power and a three-band EQ per channel.

  • 12 total inputs
  • 4 mic input channels
  • 2 stereo input channels
  • Extremely high head room offering extra dynamic range
  • 3-band EQ on each channel
  • See full product description

The ZEPHYR ZMX122FX is an 8-channel, 2-bus mixer with the right about of inputs, outputs, routing, EQ, and effects for more intimate live performance reinforcement situations. It features four microphone inputs with balanced TRS jacks (two with Phantom Power), a three-band EQ and two AUX sends on each of the four mono channels and the two stereo channels, and even two-track inputs for things such as audio playback. The ZEPHYR ZMX122FX is the perfect compact take-anywhere professional mixer.

Alto ZMX122FX Key Features

  • 12 total inputs
  • 4 mic input channels with gold plated XLR and balanced line inputs
  • 2 stereo input channels with balanced TRS jacks
  • Extremely high head room offering extra dynamic range
  • 3-band EQ on each channel
  • Built-in 24 bits digital effects process 256 choices (16 presets × 16 variations)
  • 2 AUX sends pre-channel for external effects and monitoring
  • Main output, control room, and headphone outputs

Alto ZMX122FX Tech Spec

Mono Input Channels (CH1-CH4)

  • Microphone Input: Electronically balanced, discrete input configuration
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion (THD&N): ≤0.005% At +4 dBu, 1 kHz
  • Gain range: 0 dB to 50 dB (Mic)
  • Maximum Voltage Gain: 70 dB Ch. Mic input → Main Mix out & Tape out, 80 dB Ch.
  • Mic input → Control Room & Phones, 60 dB Ch. Mic input → Aux send
  • SNR (Signal to Noise Rate ): ≥110 dBu
  • Phantom power (Mic Pin 2 / Pin 3 and Pin 1): +48 V - with switch control
  • Line Input: Electronically Balanced
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion (THD&N): ≤0.005% at + 4 dBu, 1 kHz
  • Gain Range: 15 dBu to 35 dBu

Stereo Channels: (Ch. 5 - 8)

  • Line Input: Electronically Balanced
  • SNR (Signal to Noise Ratio): ≥110 dBu
  • Frequency Response: 20 Hz to 22 kHz, +/-1 dB
  • Distortion (THD&N): ≤0.005% at +4 dBu, 1 kHz
  • Gain range: -20 dBu to +20 dBu, 60 dB Ch. Line → Main Mix out
  • Maximum Voltage Gain: 20 dB FX Return → Main Mix out, 20 dB RCA Tape input → Main Mix out

Impedance

  • Microphone Input: 3.9 kOhms
  • All Other Inputs: 10 kOhms or greater
  • Tape Out: 1 kOhms
  • All Other Outputs: 120 Ohms

Equalization

  • Mono Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz
  • Stereo Channels: High ±15 dB @ 12 kHz, Mid ±15 dB @ 2.5 kHz, Low ±15 dB @ 80 Hz

Alesis DSP Section

  • A/D And D/A Converters: 24-bit
  • DSP Resolution: 24-bit
  • Type of effects: Hall, Room, Vocal & Plate Reverbs Mono & Stereo Delay (max delay time 650 ms) Chorus, Flanger & Reverb modulations, Reverb+Delay, Reverb+Chorus, Reverb+Flanger combinations
  • Presets: 256
  • Controls: 16 x 16-position preset selector
  • Crosstalk: Adjacent Input ≤-80 dB @ 1 KHz (Ch. 1-6) , Input to Output ≤-75 dB @ 1 KHz (Stereo L/R, Ch. 1-4, Pan: panned hard left or right)

Main Mix Section

  • Tape, Aux, Phones Output
  • Output level: 0 dBu Unbalanced, 1/4" Jacks, Max out +22 dBu Unbalanced, 1/4" jacks
  • Noise (Bus noise): ≤-90 dB @ 20 Hz ~ 22 KHz (channel & Main level at 0 dB, other at minimum, DSP mute)

Other Specs

  • Power supply: 18 V, 1500 mA
  • Rated power consumption: 27 W
  • Dimensions (WxLxH): 256mm x 250mm x 72mm
  • Weight: 5.07 lb
